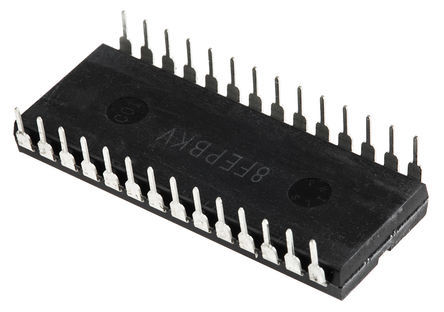

Image is for your reference only,please check specifications for details

ICM7228AIPIZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC32702274
Category:
LED Driver
Package:
PDIP-28
Datasheet:
Datasheet 3D Model
Description:
ICM7228 Series 4 - 6V 8-Digit LED Multiplexed Display Decoder Driver - PDIP-28
Stock Locations:
Availability:
437 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.58

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ICM7228AIPIZ is a 8-digit Microprocessor-compatible LED Display Decoder Driver. The ICM7228 display driver interfaces microprocessors to an 8-digit, 7-segment, numeric LED display. Included on chip are two types of 7-segment decoder, multiplex scan circuitry, LED display segment drivers, LED display digit drivers and an 8-byte static memory as display RAM. Data can be written to the ICM7228A and ICM7228B"s display RAM in sequential 8-digit update or in single-digit update format. Data is written to the ICM7228C display RAM in parallel random access format. The ICM7228A drive common anode displays. All versions can display the RAM data as either hexadecimal or code B format.
Improved 2nd source to maxim ICM7218
Fast write access time of 200ns
Multiple microprocessor compatible versions
Hexadecimal, code B and No decode modes
Individual segment control with "No Decode" feature
Digit and segment drivers on-chip
Non-overlapping digits drive
Common anode and common cathode LED versions
Low power CMOS architecture
Single 5V supply
ESD sensitive device, take proper precaution while handling the device.

Show

ICM7228AIPIZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	28 Pin
Case/Package	PDIP-28
Supply Voltage (DC)	6.00V (max)
Number of Outputs	16 Output
Input Voltage (DC)	4.00V ~ 6.00V
Output Voltage	≤6.00 V
Output Current	200 µA
Supply Current	200 µA
Number of Positions	28 Position
Input Voltage (Max)	6 V
Input Voltage (Min)	4 V
Output Voltage (Max)	5 V
Output Current (Max)	100 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4V ~ 6V
Input Voltage	4V ~ 6V
	Show
Size-Length	39.7 mm
Size-Width	14.73 mm
Size-Height	4.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
