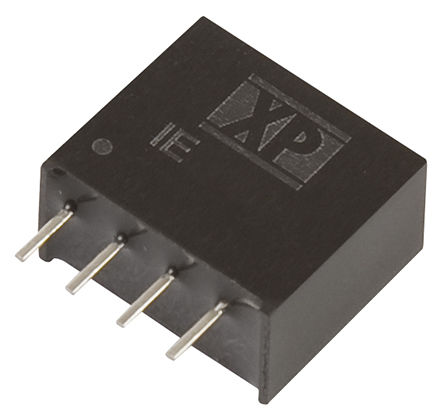

Image is for your reference only,please check specifications for details
- IE0505S - XP Power
-
Manufacturer:XP Power
-
ManyChip's Part#:MC7011300
-
Category:DC to DC Converter, DC/DC Converter
-
Package:SIP-4
-
Datasheet:Datasheet 3D Model
-
Description:XP POWER IE0505S Isolated Board Mount DC-DC Converter, 1kV Isolation, Fixed, 1 Output, 4.5V, 5.5V, 1W, 5V
-
Stock Locations:
-
Availability:61 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.17
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Low cost
- Industry standard pin-out
- 1 kVdc isolation
- -40 °C to +85°C @ full load
- UL94V-0 material
IE0505S Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | SIP-4 |
| Supply Voltage (DC) | 5.00 V |
| Power Rating | 1 W |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 5.00 V |
| Output Voltage | 5 VDC |
| Output Current | 200 mA |
| Output Power | 1 W |
| Isolation Voltage | 1 kV |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 4.5 V |
| Input Voltage (DC Max) | 5.5 V |
| Input Voltage (DC Min) | 4.5 v |
| Output Current (Max) | 200 mA |
| Input Power (Max) | 1 W |
| Input Voltage | 4.5VDC ~ 5.5VDC |
| Show | |
| Size-Length | 11.68 mm |
| Size-Width | 6.1 mm |
| Size-Height | 9.8 mm |
| Weight | 1.4 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
