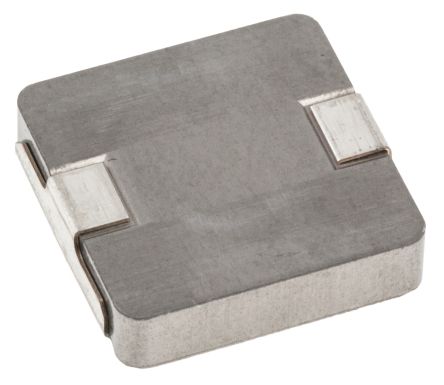

Image is for your reference only,please check specifications for details
- IHLP5050CEER4R7M01 - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC14710082
-
Category:Inductor
-
Package:Non Standard
-
Datasheet:Datasheet 3D Model
-
Description:Inductor Power Shielded Wirewound 4.7uH 20% 100kHz Powdered Iron 10A 15mOhm DCR 5050 T/R
-
Stock Locations:
-
Availability:468 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.23
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The IHLP-5050CE-01 series IHLP® low-profile High-current Inductor with shielded construction. It is suitable for use in high-current POL converters, DC/DC converters in distributed power systems and DC/DC converter for field programmable gate array (FPGA).
- Frequency range up to 5MHz
- Lowest DCR/µH, in this package size
- Handles high transient current spikes without saturation
- Ultra low buzz noise, due to composite construction
- Halogen-free, Green product
- -55 to 125°C Operating temperature range
IHLP5050CEER4R7M01 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | Non Standard |
| Current Rating | 10 A |
| Capacitance Tolerance | ±20 % |
| Inductance | 4.7 µH |
| Self Resonant Frequency | 5 MHz |
| Resistance | 15.0 Ω |
| Shielding | Yes |
| Inductance Tolerance | ±20 % |
| Test Frequency | 100 kHz |
| DC Resistance (DCR) | ≤15 mΩ |
| Current Rating (DC) | 10 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Resistance (DC Max) | 15 mΩ |
| Show | |
| Size-Length | 13.2 mm |
| Size-Width | 12.9 mm |
| Size-Height | 3.5 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
