Description

Description:

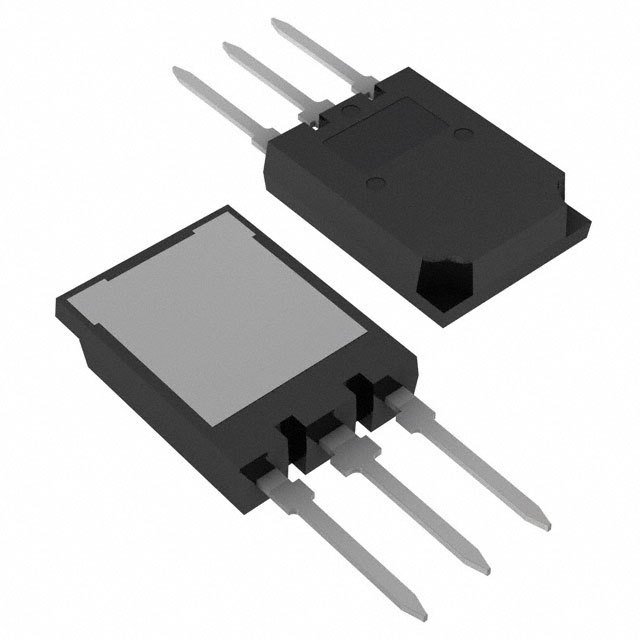

Responding to the market requirement to accommodate ever increasing amounts of silicon in smaller, space saving packages, Infineon introduces the new package TO-247PLUS for 1200V IGBT. Higher current capability, improved thermal behaviour. The TO-247PLUS has the same outer dimensions as the industry standard TO-247, but due to the absence of the screw hole, allows up to 75A in 1200V co-packed with full rated 75A diode.
Summary of Features:
High power density – up to 75 A 1200 V IGBT co-packed with 75 A diode in TO-247 footprint
20% lower R th(jh) compared to TO-247 3 pin
Extended collector-emitter pin creepage of 4.25 mm
Extended clip creepage due to fully encapsulated front side of the package
Benefits:
Higher system power density – I c increase keeping the same system thermal performance
Lower thermal resistance R th(jh) and improved by ~15% heat dissipation capability of TO-247PLUS vs TO-247
Higher reliability, extended lifetime of the device

Show

IKQ75N120CH3XKSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Positions	3 Position
Power Dissipation	938 W
Breakdown Voltage (Collector to Emitter)	1200 V
Input Power (Max)	938 W
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	938000 mW
	Show
Operating Temperature	-40℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Rail, Tube
RoHS	RoHS Compliant
