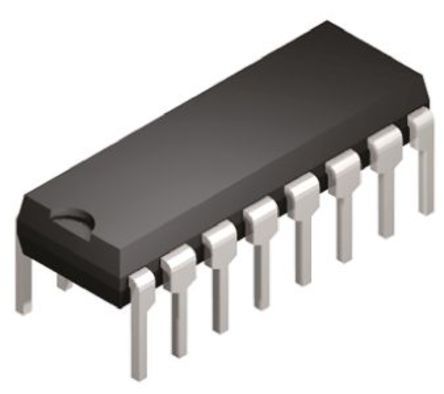

Image is for your reference only,please check specifications for details
- ILQ621GB - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC17780793
-
Category:Optocoupler, Optoisolator
-
Package:PDIP-16
-
Datasheet:Datasheet 3D Model
-
Description:ILQ621GB Series Quad Channel 70V 5300Vrms Phototransistor Optocoupler - DIP-16
-
Stock Locations:
-
Availability:539 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.2
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ILQ621GB is a 4-channel 16-pin Phototransistor Output Optocoupler uses GaAs IRLED emitters and high gain NPN silicon phototransistors. This device is constructed using double moulded insulation technology. This assembly process offers a withstand test voltage of 7500VDC. The ILQ621GB is well suited for CMOS interfacing given the CTRCEsat of 30% minimum at IF of 1mA. High gain linear operation is guaranteed by a minimum CTRCE of 100% at 5mA. It has a guaranteed CTRCE 50% minimum at 5mA. The transparent ion shield insures stable DC gain in applications such as power supply feedback circuits, where constant DC VIO voltages are present.
- 70V High collector emitter voltage
- 6V Reverse voltage
- 1.5A Surge current
ILQ621GB Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 16 Pin |
| Case/Package | PDIP-16 |
| Voltage Rating (DC) | 1.15 V |
| Rise/Fall Time | 2 μs |
| Output Voltage | 70.0 V |
| Number of Channels | 4 Channel |
| Number of Positions | 16 Position |
| Forward Voltage | 1.15 V |
| Input Current | 60 mA |
| Power Dissipation | 0.5 W |
| Rise Time | 2 µs |
| Isolation Voltage | 5300 Vrms |
| Forward Current | 60 mA |
| Output Voltage (Max) | 70 V |
| Input Current (Min) | 60 mA |
| Reverse Breakdown Voltage | 6 V |
| Maximum Forward Voltage (Max) | 1.3 V |
| Forward Current (Max) | 60 mA |
| Fall Time | 2 µs |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 500 mW |
| Show | |
| Operating Temperature | -55℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
