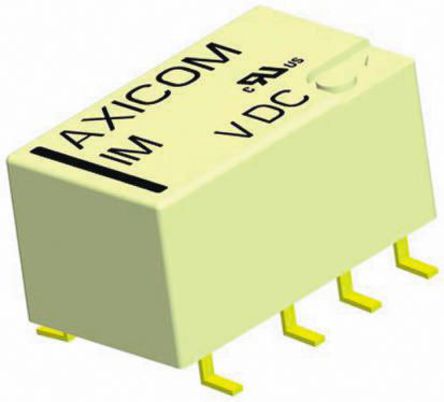

Image is for your reference only,please check specifications for details

IM06DGR - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC29272451
Category:
Industrial Relay
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
Electromechanical Relay 12VDC 1.029KΩ 5A DPDT (( 10mm 7.5mm 5.65mm)) SMD Signal Relay Automotive
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IM series from TE Connectivity are signal relays. These are slim line, low profile, electromechanical power relay with 5.65mm height and typically used in miniature equipments. The IM series relays are available in several models such as standard and high dielectric, high current and high contact stability relays. It offers high dielectric and surge capability up to 2500Vrms between open contacts and 3000Vrms between coil and contacts.
DPDT contact form
Switching capacity of 2A, 5A at 220VDC and 250VAC based on models
Switching power is 60W
Monostable, bistable versions available
Coil voltage ranges from 1.5 to 24VDC
UL standard approved
High mechanical shock resistance up to 300g functional
Low coil power consumption
Through hole and SMD terminals available

Show

IM06DGR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	DIP
Current Rating	5 A
Insulation Resistance	>1000 MΩ
Contacts Type	DPDT
Contact Resistance	50.0 mΩ
Power Consumption	140 mW
Contact Current Rating	5 A
Coil Voltage	12 VDC
Coil Current	11.66 mA
Coil Voltage (AC)	12 V
Coil Power (DC)	140 mW
Coil Resistance	1.029 kΩ
Coil Voltage (DC)	12 V
Coil Power	140 mW
Switching Current (Max)	5 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	12 VDC
Maximum Contact Resistance (Max)	<50 mΩ
	Show
Size-Length	10 mm
Size-Height	5.65 mm
Contact Material	Silver Nickel
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
HTS Code	8536490099
ECCN Code	EAR99
