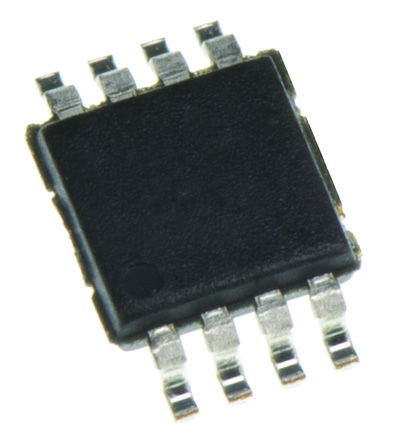

INA159AIDGKT - TI
Manufacturer:
TI
ManyChip's Part#:
MC17965320
Category:
Operational Amplifier, OP Amp IC
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS INA159AIDGKT Differential Amplifier, Level Translation, 1 Amplifiers, 500µV, 0.2dB, 1.5MHz, -40℃, 150℃
Stock Locations:
Availability:
292 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.75

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The INA159AIDGKT is a precision high slew rate Difference Amplifier consisting of a precision op-amp with a precision resistor network. The gain of 1/5 makes the INA159 useful to couple ±10V signals to single-supply analog-to-digital converters (ADCs), particularly those operating on a single +5V supply. The on-chip resistors are laser-trimmed for accurate gain and high common-mode rejection. Excellent temperature coefficient of resistance (TCR) tracking of the resistors maintains gain accuracy and common-mode rejection over temperature. The input common-mode voltage range extends beyond the positive and negative supply rails. It operates on a total of +1.8 to +5.5V single or split supplies. The INA159 reference input uses two resistors for easy mid-supply or reference biasing. The difference amplifier is the foundation of many commonly-used circuits. The INA159 provides this circuit function without using an expensive external precision resistor network.
Gain of 0.2 to interface ±10V signals to single-supply ADCs
±0.024% (maximum) Gain accuracy
±1.5µV/°C Low offset drift
Single-supply operation down to 1.8V
Green product and no Sb/Br

Show

INA159AIDGKT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Supply Current	1.1 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	80 dB
Quiescent Current	1.10 mA
Bandwidth	1.5 MHz
Slew Rate	15.0 V/μs
Input Offset Voltage	500 µV
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	1.5 MHz
Gain Bandwidth	80 dB
Minimum CMRR Range	80 dB
Supply Voltage	1.8V ~ 5.5V
Supply Voltage (Max)	5V ~ 7V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.97 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
