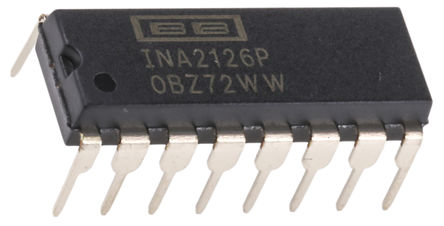

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Thanks to Texas Instruments" instrumentation amplifier INA2126P differential amplifier, you will be able to clearly filter and analyze distorted audio samples. Its typical dual supply voltage is ±15 V, with a minimum of ±1.35 V and maximum of ±18 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device uses one or two power supplies. It has 2 channels per chip.
INA2126P Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 16 Pin |
| Case/Package | PDIP-16 |
| Supply Current | 175 µA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Common Mode Rejection Ratio | 83 dB |
| Quiescent Current | 175 µA |
| Bandwidth | 200 kHz |
| Slew Rate | 40.0 mV/μs |
| Gain Bandwidth Product | 200 kHz |
| Input Offset Voltage | 100 µV |
| Input Bias Current | 10 nA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| 3dB Bandwidth | 200 kHz |
| Minimum CMRR Range | 83 dB |
| Supply Voltage (Max) | 30V ~ 50V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 19.69 mm |
| Size-Width | 6.6 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
