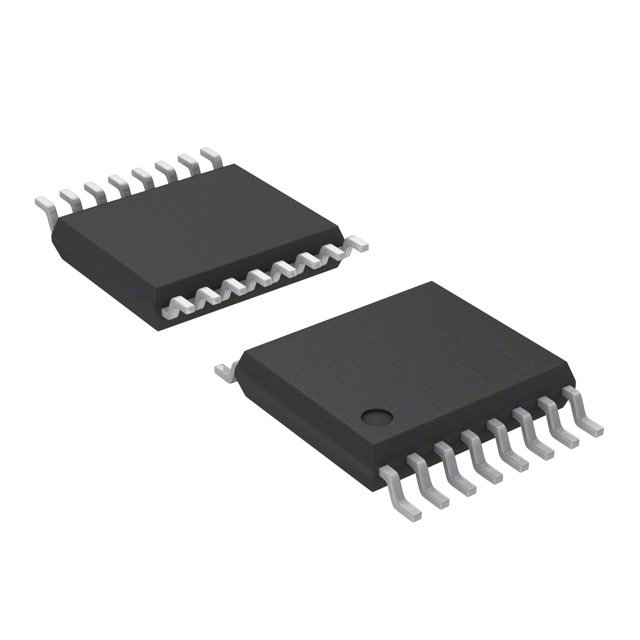

Image is for your reference only,please check specifications for details

INA250A1PWR - TI
Manufacturer:
TI
ManyChip's Part#:
MC43418443
Category:
Power Monitor
Package:
TSSOP-16
Datasheet:
Datasheet 3D Model
Description:
Current & Power Monitors & Regulators 36V Low-/High-Side Bi-Directional Zero-Drift Current Sense Amp w/Precision Int Shunt Resistor 16-TSSOP -40℃ to 125℃
Stock Locations:
Availability:
244 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.85

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

INA250A1PWR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Supply Current	200 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	16 Position
Common Mode Rejection Ratio	102 dB
Bandwidth	50 kHz
Gain Bandwidth Product	0.05 MHz
Input Bias Current	28 µA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	0.3 %
Minimum CMRR Range	94 dB
Supply Voltage (Max)	36 V
Supply Voltage (Min)	2.7 V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
