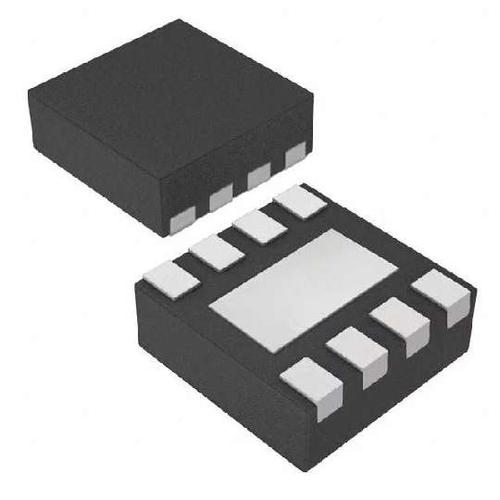

LM2775DSGT - TI
Manufacturer:
TI
ManyChip's Part#:
MC6777419
Category:
Voltage Regulator
Package:
WSON-8
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 2.7V to 5.5V Step Up Single-Out 4.8V to 5.2V 0.2A 8Pin WSON EP T/R
Stock Locations:
Availability:
312 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.53

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM2775DSGT is a switched capacitor charge-pump Voltage Converter Doubler that produces a low-noise output voltage. The LM2775 can supply up to 200mA of output current over a 3.1 to 5.5V input range, as well as up to 125mA of output current when the input voltage is as low as 2.7V. At low output currents, the LM2775 can reduce its quiescent current by operating in a pulse frequency modulation (PFM) mode. PFM mode can be enabled or disabled by driving the PFM pin to high or low. Additionally, when the LM2775 is in shutdown, the user can chose to have the output voltage pulled to GND or left in a high impedance state by setting the OUTDIS pin high or low.
Shutdown disconnects load from VIN
Current limit and thermal protection
PFM Operation during light load currents (PFM pin tied high)
Green product and no Sb/Br

Show

LM2775DSGT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	WSON-8
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	200 mA
Number of Positions	8 Position
Quiescent Current	75.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	2 MHz
Topology	Boost
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Output Voltage (Min)	5 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Min)	2.7 V
Input Voltage	2.7V ~ 5.5V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
