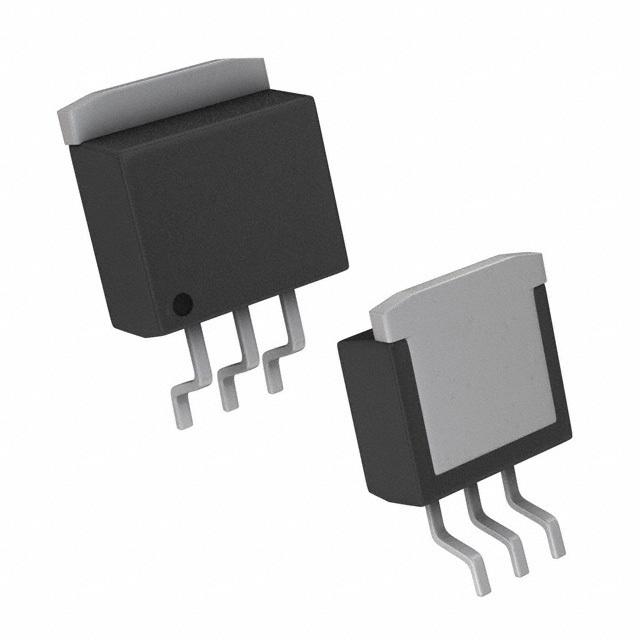

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Optimized for synchronous rectification
- Ideal for high switching frequency
- Output capacitance reduction of up to 44%
- R DS(on) reduction of up to 44%
- Benefits:
- Highest system efficiency
- Reduced switching and conduction losses
- Less paralleling required
- Increased power density
- Low voltage overshoot
- Target Applications:
- Telecom
- Server
- Solar
- Low voltage drives
- Light electric vehicles
- Adapter
IPB017N08N5ATMA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-263-3 |
| Power Rating | 375 W |
| Number of Channels | 1 Channel |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 1.5 mΩ |
| Polarity | N-CH |
| Power Dissipation | 375 W |
| Threshold Voltage | 2.2 V |
| Drain to Source Voltage (Vds) | 80 V |
| Breakdown Voltage (Drain to Source) | 80 V |
| Continuous Drain Current (Ids) | 120A |
| Rise Time | 36 ns |
| Input Capacitance (Ciss) | 16900pF @40V(Vds) |
| Input Power (Max) | 375 W |
| Fall Time | 37 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 375W (Tc) |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 9.25 mm |
| Size-Height | 4.4 mm |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status |
