Description
- The IPD30N10S3L-34 is a N-channel enhancement-mode MOSFET with lowest switching and conduction power losses for highest thermal efficiency.
- AEC-Q101 qualified
- MSL1 up to 260°C peak reflow
- Green device
- 100% Avalanche tested
- Robust packages with superior quality and reliability
- Optimized total gate charge enables smaller driver output stages

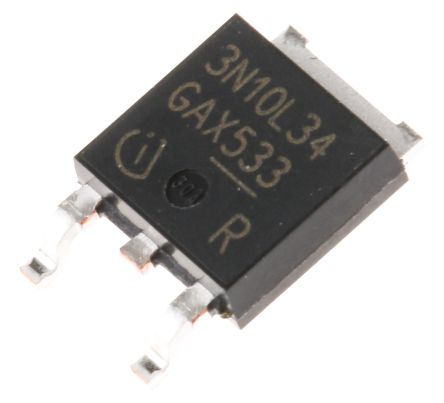

IPD30N10S3L34ATMA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-252-3 |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.0258 Ω |
| Polarity | N-Channel |
| Power Dissipation | 57 W |
| Threshold Voltage | 1.7 V |
| Input Capacitance | 1520 pF |
| Drain to Source Voltage (Vds) | 100 V |
| Continuous Drain Current (Ids) | 30A |
| Rise Time | 4 ns |
| Input Capacitance (Ciss) | 1520pF @25V(Vds) |
| Fall Time | 3 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 57W (Tc) |
| Show | |
| Size-Length | 6.5 mm |
| Size-Width | 6.22 mm |
| Size-Height | 2.3 mm |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
