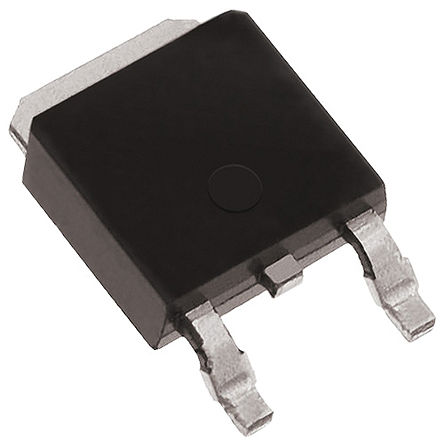

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Narrow margins between typical and max R DS(on)
- Reduced energy stored in output capacitance (E oss)
- Good body diode ruggedness and reduced reverse recovery charge (Q rr)
- Optimized integrated R g
- Benefits:
- Low conduction losses
- Low switching losses
- Suitable for hard and soft switching
- Easy controllable switching behavior
- Improved efficiencyand consequent reduction of power consumption
- Less design in effort
- Easy to use
- Target Applications:
- Laptop and notebook adapter
- Low power charger
- Lighting
- LCD and LED TV
IPD60R2K1CE Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-252 |
| Polarity | N-CH |
| Drain to Source Voltage (Vds) | 600 V |
| Continuous Drain Current (Ids) | 2.3A |
| Input Capacitance (Ciss) | 140pF @100V(Vds) |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 38 W |
| Show | |
| Size-Length | 6.73 mm |
| Size-Width | 6.22 mm |
| Size-Height | 2.41 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS-conform |
| Lead-Free Status | Lead Free |
