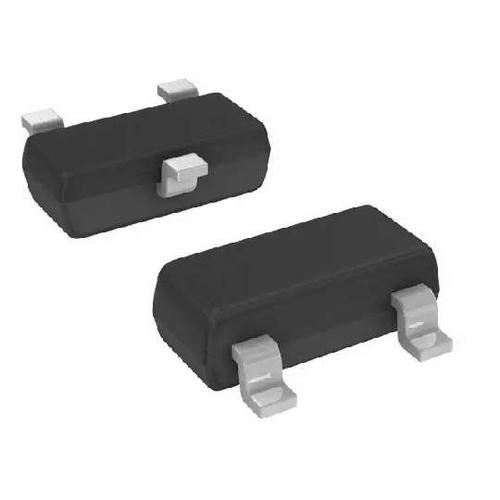

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

ZVN3320FTA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	200 V
Current Rating	60.0 mA
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	25 Ω
Polarity	N-Channel
Power Dissipation	330 mW
Threshold Voltage	1 V
Input Capacitance	45.0 pF
Drain to Source Voltage (Vds)	200 V
Breakdown Voltage (Drain to Source)	200 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	60.0 mA
Rise Time	7 ns
Input Capacitance (Ciss)	45pF @25V(Vds)
Input Power (Max)	330 mW
Fall Time	6 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	330mW (Ta)
	Show
Size-Length	3.04 mm
Size-Width	1.4 mm
Size-Height	1.02 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
