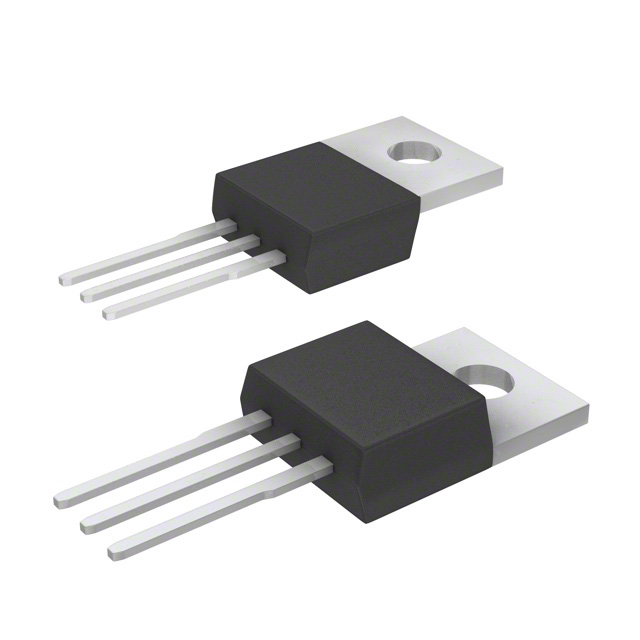

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- 650V technology with integrated fast body diode
- Limited voltage overshoot during hard commutation
- Significant Q g reduction compared to 600V CFD technology
- Tighter R DS(ON) max to R DS(on) typ window
- Easy to design-in
- Lower price compared to 600V CFD technology
- Benefits:
- Low switching losses due to low Q rr at repetitive commutation on body diode
- Self limiting di/dt and dv/dt
- Low Q oss
- Reduced turn on and turn of delay times
- Outstanding CoolMOS™ quality
- Target Applications:
- Telecom
- Server
- Solar
- HID lamp ballast
- LED lighting
- eMobility
IPP65R420CFD Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | TO-220-3 |
| Polarity | N-CH |
| Drain to Source Voltage (Vds) | 650 V |
| Continuous Drain Current (Ids) | 8.7A |
| Rise Time | 7 ns |
| Input Capacitance (Ciss) | 870pF @100V(Vds) |
| Input Power (Max) | 83.3 W |
| Fall Time | 8 ns |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 4.4 mm |
| Size-Height | 15.65 mm |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
