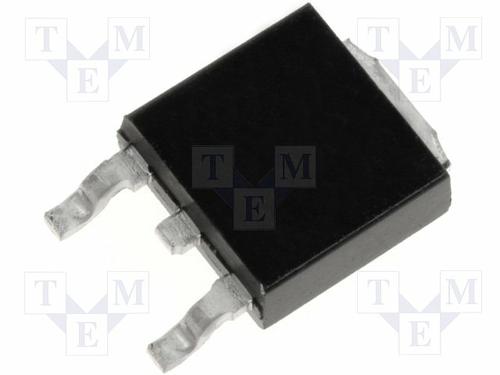

Image is for your reference only,please check specifications for details

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IPS2041RPBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Operating Voltage	60.0V (max)
Number of Outputs	1 Output
Input Voltage (DC)	5.50 V
Output Current	1.4 A
Drain to Source Resistance (on) (Rds)	0.13 Ω
Power Dissipation	1 W
Part Family	IPS2041RPBF
Threshold Voltage	2 V
Clamping Voltage	68 V
Input Voltage (Max)	6 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage	4V ~ 5.5V
Supply Voltage (Max)	60 V
Supply Voltage (Min)	0.3 V
Input Voltage	4V ~ 5.5V
	Show
Size-Height	2.39 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
