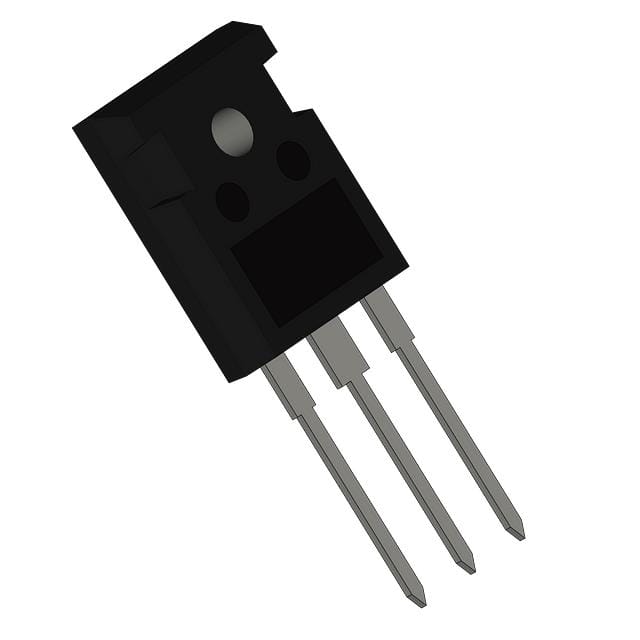

Image is for your reference only,please check specifications for details
Updated at 13/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Lowest figure-of-merit RON x Qg
- Ultra low gate charge
- Extreme dv/dt rated
- High peak current capability
- Automotive AEC Q101 qualified
- Green package (RoHS compliant)
- CoolMOS CPA is specially designed for:
- DC/DC converters for Automotive Application
IPW60R099CPA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Case/Package | TO-247-3 |
| Polarity | N-CH |
| Power Dissipation | 255 W |
| Drain to Source Voltage (Vds) | 600 V |
| Continuous Drain Current (Ids) | 31A |
| Rise Time | 5 ns |
| Fall Time | 5 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 16.13 mm |
| Size-Width | 5.21 mm |
| Size-Height | 21.1 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
