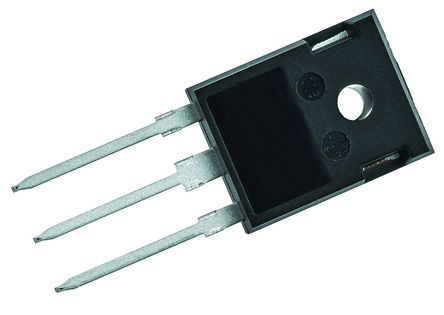

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description:
CoolMOS™ E6 combines Infineon"s experience as the leading superjunction MOSFET supplier with best-in-class innovation. The offered devices provide all benefits of a fast switching SJ MOSFET while not sacrificing ease-of-use. Extremely low switching and conduction losses make switching applications even more efficient, compact, lighter and cooler.
**600V CoolMOS™ E6 is replacement for 600V CoolMOS™ C3**
**650V CoolMOS™ E6 is replacement for 650V CoolMOS™ C3**
Summary of Features:
Easy control of switching behavior
Very high commutation ruggedness
Extremely low losses due to very low Figure of Merit (R DS(ON)*Q g) and E oss)
Easy to use
Better light load efficiency compared to C3
Outstanding reliability with proven CoolMOS™ quality combined with high body diode ruggedness
Better price performance in comparison to previous CoolMOS™ generations
More efficient, more compact, lighter and cooler
Benefits:
Improved power density
Improved reliability
General purpose part can be used in both soft and hard switching topologies
Better light load effciency
Improved effciency in hard switching applications
Improved ease-of-use
Reduces possible ringing due to pcb layout and package parasitic effects
Target Applications:
Consumer
Adapter
eMobility
PFC stages for server & telecom
SMPS
PC power
Solar
Lighting

Show

IPW60R190E6 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Channels	1 Channel
Polarity	N-CH
Power Dissipation	151W (Tc)
Drain to Source Voltage (Vds)	650 V
Continuous Drain Current (Ids)	20.2A
Rise Time	10 ns
Input Capacitance (Ciss)	1400pF @100V(Vds)
Input Power (Max)	151 W
Fall Time	8 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	151W (Tc)
	Show
Size-Length	16.13 mm
Size-Width	5.21 mm
Size-Height	21.1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
