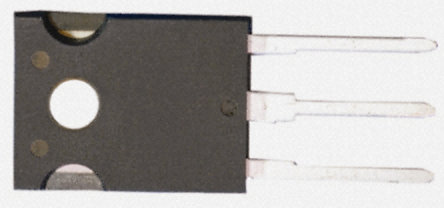

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Low specific on-state resistance (R on*A)
- Very low energy storage in output capacitance (E oss) @400V
- Low gate charge (Q g)
- Fieldproven CoolMOS™ quality
- CoolMOS™ technology has been manufactured by Infineon since 1998
- Benefits:
- High efficiency and power density
- Outstanding cost/performance
- High reliability
- Ease-of-use
- Target Applications:
- Consumer
- PC power
- Adapter
- Lighting
IPW90R340C3 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-247-3 |
| Polarity | N-Channel |
| Power Dissipation | 208 W |
| Drain to Source Voltage (Vds) | 900 V |
| Continuous Drain Current (Ids) | 15.0 A |
| Rise Time | 20 ns |
| Input Capacitance (Ciss) | 2400pF @100V(Vds) |
| Fall Time | 25 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 208W (Tc) |
| Show | |
| Size-Length | 16.13 mm |
| Size-Width | 5.21 mm |
| Size-Height | 21.1 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
