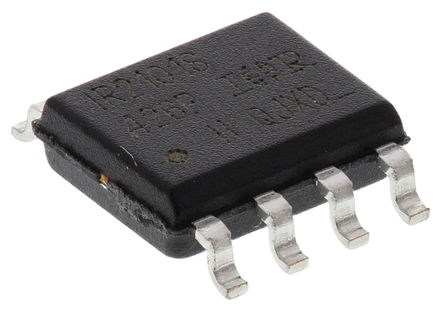

- IR2101SPBF - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC6422969
-
Category:FET Driver
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:Infineon IR2101SPBF, Dual MOSFET Power Driver, 360mA, 10 → 20V, Non-Inverting, 8Pin SOIC
-
Stock Locations:
-
Availability:3,741 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.08
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Features:**
- * Floating Channel Designed for Bootstrap Operation
- * Fully Operational to +200 V
- * Gate Drive Supply Range from 10 to 20 V
- * Matched Propagation Delay for Both Channels
IR2101SPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Voltage (DC) | 10.0V (min) |
| Operating Voltage | 10V ~ 20V |
| Rise/Fall Time | 100ns, 50ns |
| Number of Outputs | 2 Output |
| Output Current | 210 mA |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Power Dissipation | 625 mW |
| Quiescent Current | 270 µA |
| Rise Time | 170 ns |
| Fall Time | 90 ns |
| Fall Time (Max) | 90 ns |
| Fall Time (Max) | 170 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 625 mW |
| Supply Voltage | 10V ~ 20V |
| Supply Voltage (Max) | 20 V |
| Supply Voltage (Min) | 10 V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2018/06/27 |
| ECCN Code | EAR99 |
