- Summary of Features:
- Floating channel designed for bootstrap operation
- Fully operational to +500 V
- Tolerant to negative transient voltage
- dV/dt immune
- Gate drive supply range from 12 to 18 V
- Undervoltage lockout
- Current detection and limiting loop to limit driven power transistor current
- Error lead indicates fault conditions and programs shutdown time
- Output in phase with input
- 2.5 V, 5 V and 15 V input logic compatible

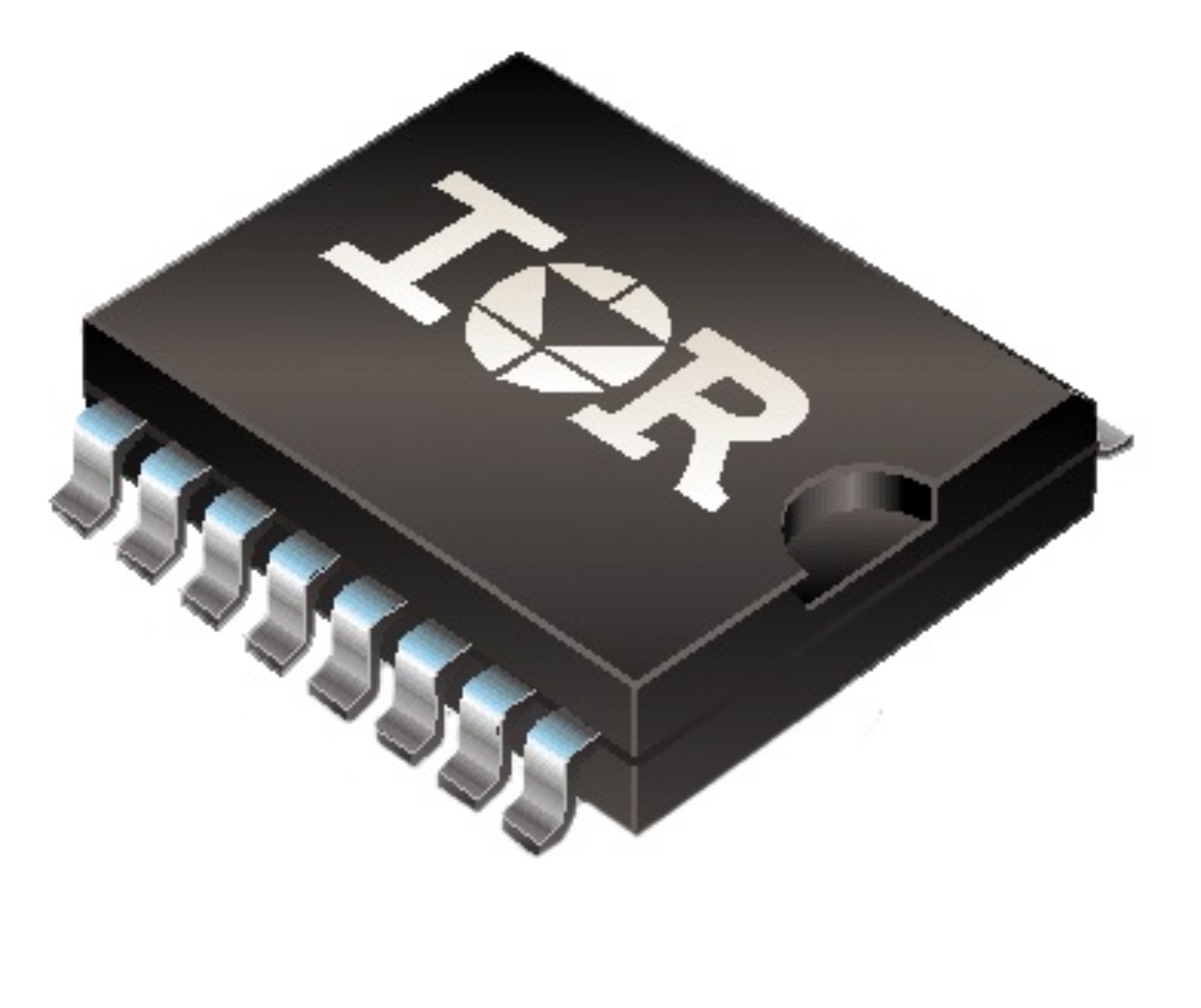

IR2125SPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Rise/Fall Time | 43ns, 26ns |
| Number of Outputs | 1 Output |
| Output Voltage | 12.18 V |
| Output Current | 1 A |
| Number of Channels | 1 Channel |
| Power Dissipation | 1250 mW |
| Fall Time (Max) | 35 ns |
| Fall Time (Max) | 60 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1250 mW |
| Supply Voltage | 0V ~ 18V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
