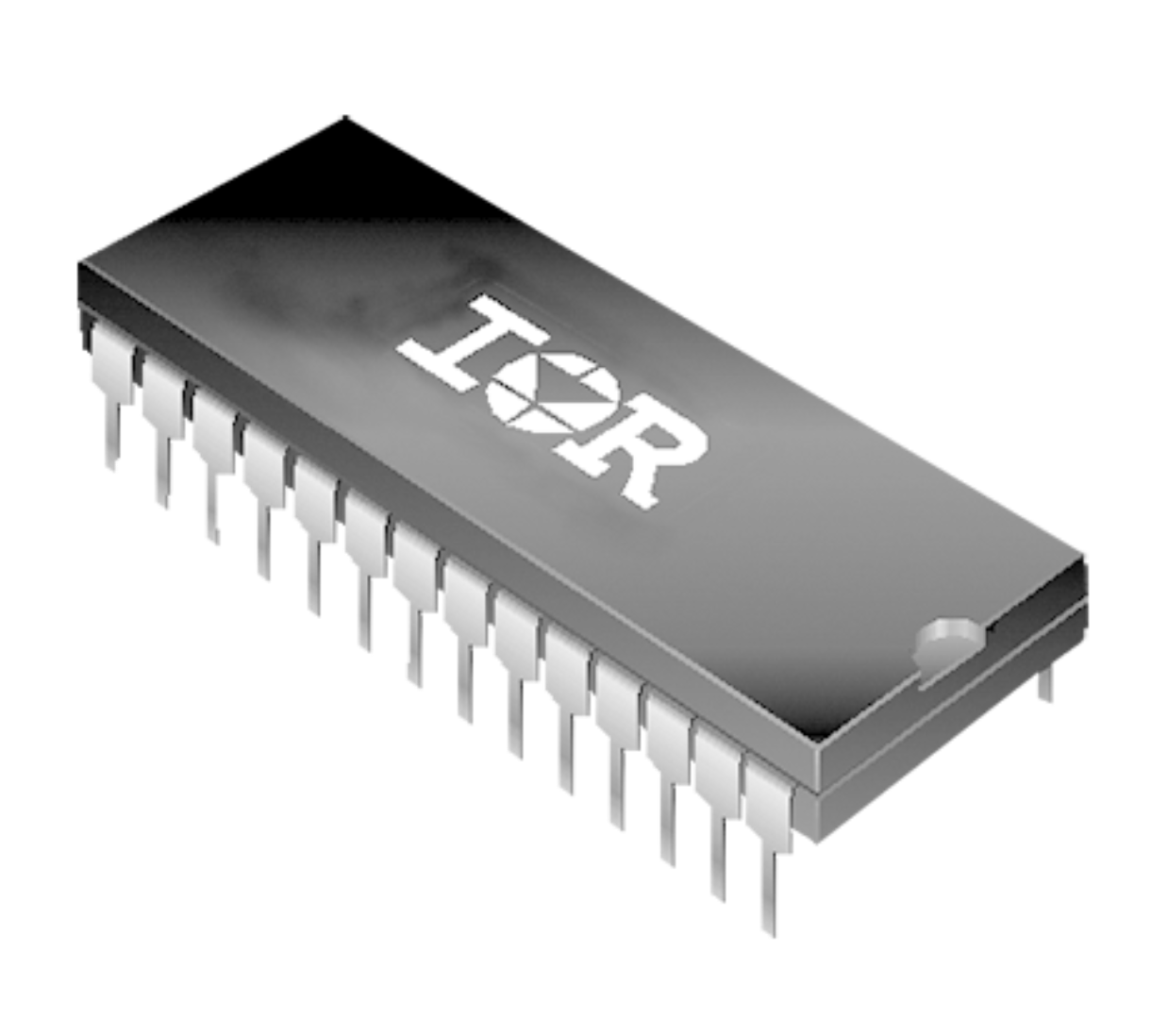

Image is for your reference only,please check specifications for details

IR2130PBF - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC10579763
Category:
FET Driver
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
600V Three Phase Driver IC with typical 0.25A source and 0.5A sink currents in 28 Lead PDIP package for IGBTs and MOSFETs. Also available in 44 Lead PLCC and 28 Lead SOIC WB
Stock Locations:
Availability:
101 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 13.18

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IR2130PBF is a 3-phase high voltage high speed power MOSFET and IGBT Bridge Driver with three independent high and low-side referenced output channels. Proprietary HVIC technology enables ruggedized monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 2.5V logic. A ground-referenced operational amplifier provides analogue feedback of bridge current via an external current sense resistor. A current trip function which terminates all six outputs is also derived from this resistor. An open drain FAULT signal indicates if an over-current or under-voltage shutdown has occurred. The output driver features a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use at high frequencies. The floating channels can be used to drive N-channel power MOSFETs or IGBTs in the high-side configuration which operates up to 600V.
Tolerant to negative transient voltage DV/DT Immune
Under-voltage lockout for all channels
Over-current shutdown turns OFF all six drivers
Independent half-bridge drivers
Matched propagation delay for all channels
2.5V Logic compatible
Outputs out of phase with inputs
Cross-conduction prevention logic

Show

IR2130PBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	28 Pin
Case/Package	PDIP-28
Operating Voltage	10V ~ 20V
Power Rating	1.5 W
Rise/Fall Time	80ns, 35ns
Number of Outputs	6 Output
Output Voltage	620 V
Output Current	250 mA
Number of Channels	6 Channel
Number of Positions	28 Position
Power Dissipation	1500 mW
Rise Time	125ns (Max)
Fall Time	55ns (Max)
Fall Time (Max)	55 ns
Fall Time (Max)	125 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1500 mW
Supply Voltage	10V ~ 20V
Supply Voltage (Max)	20 V
Supply Voltage (Min)	10 V
	Show
Size-Length	39.75 mm
Size-Width	14.73 mm
Size-Height	6.35 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
