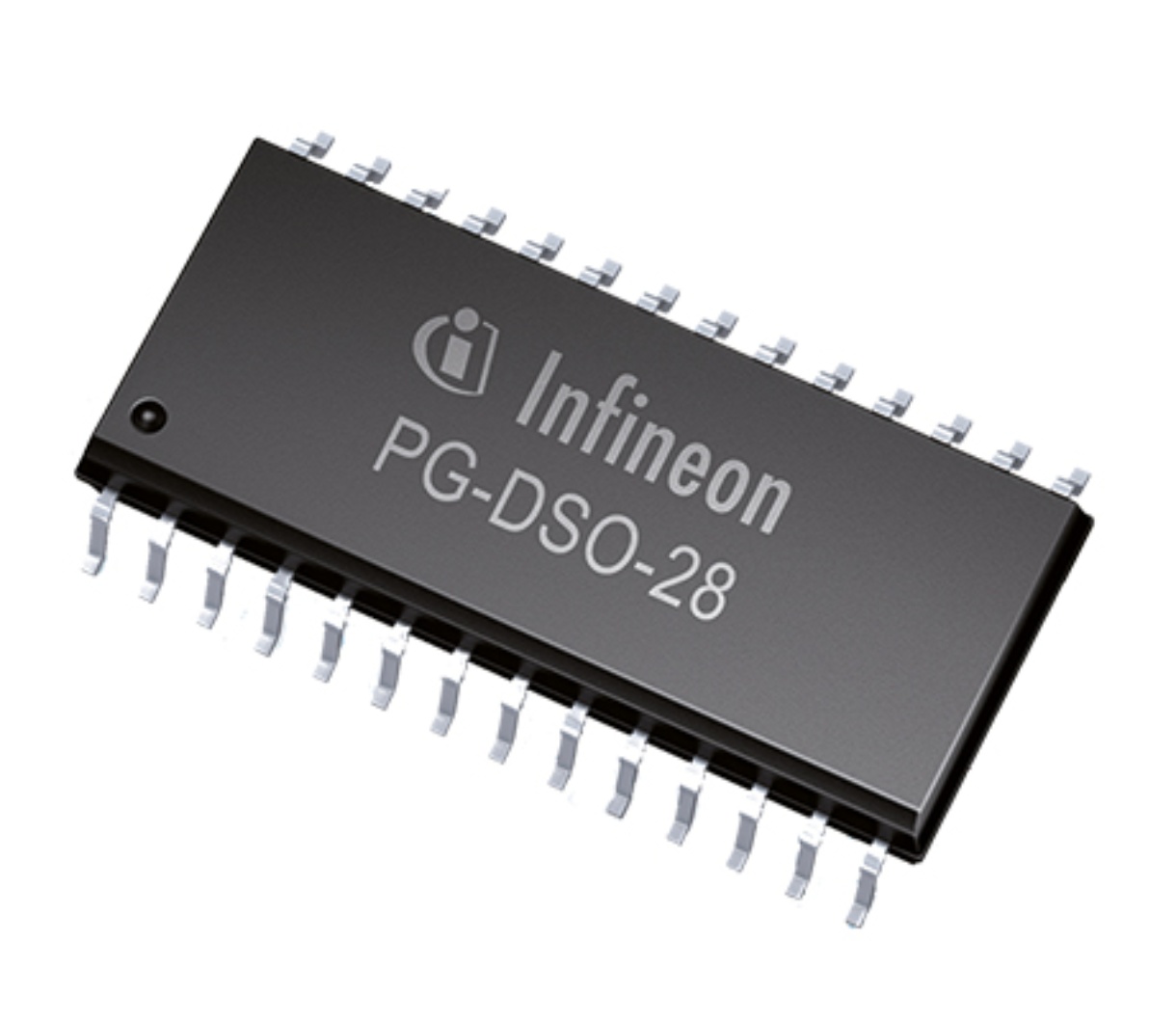

Image is for your reference only,please check specifications for details
- IR2136STRPBF - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC2306087
-
Category:FET Driver
-
Package:SOIC-28
-
Datasheet:Datasheet 3D Model
-
Description:MOSFET DRVR 600V 0.35A 6Out Hi/Lo Side 3-Phase Brdg Inv 28Pin SOIC W T/R
-
Stock Locations:
-
Availability:479 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.84
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Floating channel designed for bootstrap operation
- Fully operational to +600 V
- Tolerant to negative transient voltage, dV/dt immune
- Gate drive supply range from 10 V to 20 V
- Undervoltage lockout for all channels
- Over-current shutdown turns off all six drivers
- Independent 3 half-bridge drivers
- Matched propagation delay for all channels
- Cross-conduction prevention logic
- Low side output out of phase with inputs. High side outputs out of phase
- 3.3 V logic compatible
- Lower di/dt gate drive for better noise immunity
- Externally programmable delay for automatic fault clear
- Variations include IR21363
IR2136STRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | SOIC-28 |
| Supply Voltage (DC) | 12.0V (min) |
| Rise/Fall Time | 125ns, 50ns |
| Number of Outputs | 6 Output |
| Output Voltage | 10.20 V |
| Output Current | 350 mA |
| Number of Channels | 2 Channel |
| Number of Positions | 28 Position |
| Power Dissipation | 1600 mW |
| Quiescent Current | 1.6 mA |
| Rise Time | 125 ns |
| Fall Time | 50 ns |
| Fall Time (Max) | 75 ns |
| Fall Time (Max) | 190 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1600 mW |
| Supply Voltage | 10V ~ 20V |
| Supply Voltage (Max) | 20 V |
| Supply Voltage (Min) | 12 V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
