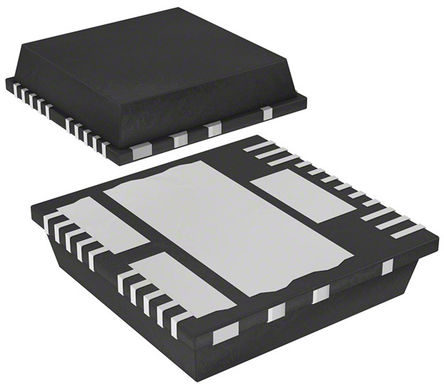

Image is for your reference only,please check specifications for details

IR3899MTRPBF - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC24176000
Category:
DC to DC Converter
Package:
QFN-16
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 1V to 21V Step Down Single-Out 0.5V to 18.06V 9A 16Pin QFN EP T/R
Stock Locations:
Availability:
976 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.34

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**Highly Integrated Single-Input Voltage, Buck Regulator, Infineon**
Infineon offer a range of synchronous buck regulators, some include PMBus Interface. The DC-DC converters have many features such as Internal LDO, programmable switching Frequency, Integrated MOSFETs and Bootstrap diode and is available in a PQFN package. Applications include Netcom and telecom, desktops, servers, graphic boards and point of load.

Show

IR3899MTRPBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	QFN-16
Frequency	1.5 MHz
Operating Voltage	5V ~ 21V
Number of Outputs	1 Output
Output Voltage	0.5V ~ 18.06V
Output Current	9 A
Number of Channels	1 Channel
Number of Positions	17 Position
Switching Frequency	1.5 MHz
Switching Current	12.7 A
Input Voltage (Max)	21 V
Input Voltage (Min)	1 V
Output Voltage (Max)	18.06 V
Output Voltage (Min)	0.5 V
Output Current (Max)	9 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	1V ~ 21V
	Show
Size-Length	4 mm
Size-Width	5 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
