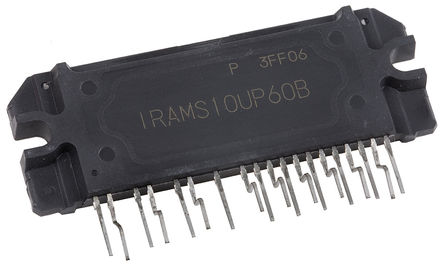

Image is for your reference only,please check specifications for details

IRAMS10UP60A - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC47494936
Category:
Motor Driver
Package:
SIP-1
Datasheet:
Datasheet 3D Model
Description:
Controller; Motion; DIP; 25; 15V; 600V; 10A; 275muJ; 20W; 150℃; -40 / 125℃; 1.6mA
Stock Locations:
Availability:
10,903 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 30.87

Updated at 04/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IRAMS10UP60A is a Plug N Drive™ Integrated Power Hybrid IC developed and optimized for electronic motor control in appliance applications such as washing machines and refrigerators. Plug N Drive technology offers an extremely compact and high performance AC motor-driver for a very simple design. A built-in temperature monitor and over-temperature/over-current protection, along with short-circuit rated IGBTs and integrated under-voltage lockout function and deliver high level of protection and fail-safe operation. The integration of the bootstrap diodes for the high-side driver section and the 1-polarity power supply required to drive the internal circuitry, simplify the utilization of the module.
Temperature monitor
Temperature and over-current shutdown
Low VCE (ON) non punch through IGBT technology
Under-voltage lockout
Matched propagation delay
Low side IGBT emitter pins for current control
Schmitt-triggered input logic
Cross-conduction prevention logic
Lower di/dt gate driver for better noise immunity

Show

IRAMS10UP60A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	23 Pin
Case/Package	SIP-1
Frequency	20 KHz
Operating Voltage	12V ~ 20V
Number of Outputs	3 Output
Output Voltage	600 V
Output Current	10 A
Number of Channels	3 Channel
Number of Positions	23 Position
Power Dissipation	20000 mW
Isolation Voltage	2000 Vrms
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	20000 mW
Supply Voltage	12.20 VDC
Supply Voltage (Max)	20 V
Supply Voltage (Min)	12 V
	Show
Size-Length	62 mm
Size-Width	5 mm
Size-Height	22.3 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Last Time Buy
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
