Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 8 Pin |

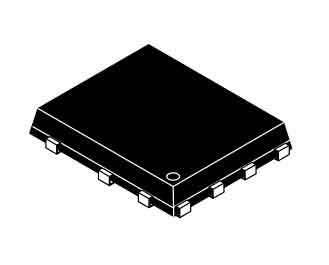

Case/Package | DFN-8 |
Halogen Free Status | Halogen Free |
Number of Positions | 8 Position |
Drain to Source Resistance (on) (Rds) | 7.3 mΩ |
Polarity | N-CH |
Power Dissipation | 1.97 W |
Threshold Voltage | 2.1 V |
Drain to Source Voltage (Vds) | 30 V |
Breakdown Voltage (Drain to Source) | 30 V |
Continuous Drain Current (Ids) | 12A/18A |
Input Capacitance (Ciss) | 970pF @15V(Vds) |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -55 ℃ |
Show | |
Operating Temperature | -55℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
