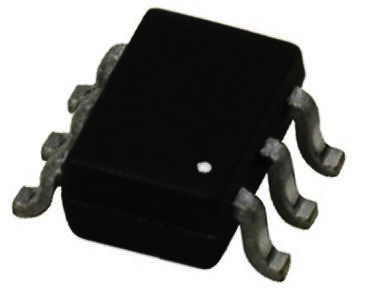

Image is for your reference only,please check specifications for details

BCR401UE6327HTSA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC5037033
Category:
LED Driver
Package:
SC-74-6
Datasheet:
Datasheet 3D Model
Description:
LED Driver, Linear, 1.4V to 40V input, 3Outputs, 8.6V/10mA out, SC-74-6
Stock Locations:
Availability:
2,385 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.23

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BCR 401U E6327 is a LED Driver to drive low power LEDs. The BCR 401U E6327 can be operated at higher supply voltages by putting LEDs between the supply voltage VS and the power supply pin of the LED driver. The BCR 401U E6327 is a perfect fit for numerous low power LED applications by combining small form factor. This LED driver offers several advantages to resistors like significantly higher current control at very low voltage drop ensuring high lifetime of the LEDs. It features longer lifetime of the LEDs due to reduced output current at higher temperatures (negative thermal coefficient). Dimming is possible by using an external digital transistor at the ground pin.
Output current adjustable up to 65mA with an external resistor
Easy paralleling of drivers to increase current
High current accuracy at supply voltage variation
Negative thermal coefficient of -0.2%/K reduces output current at higher temperatures
Homogenous light output despite varying forward voltages in different LED strings
Homogenous light output of LEDs despite voltage drop across long supply lines
Homogenous light output independent from supply voltage variations
Smaller form factor
Higher reliability due to less soldering joints
Higher output current accuracy due to pretested LED drivers

Show

BCR401UE6327HTSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-74-6
Number of Outputs	1 Output
Output Voltage	38 V
Output Current	10 mA
Supply Current	500 mA
Number of Positions	6 Position
Power Dissipation	500 W
Power Consumption	750 mW
Input Voltage (Max)	40 V
Input Voltage (Min)	1.4 V
Output Voltage (Max)	38 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	500 mW
Supply Voltage (Max)	40 V
Input Voltage	40 VDC
	Show
Size-Width	1.6 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
