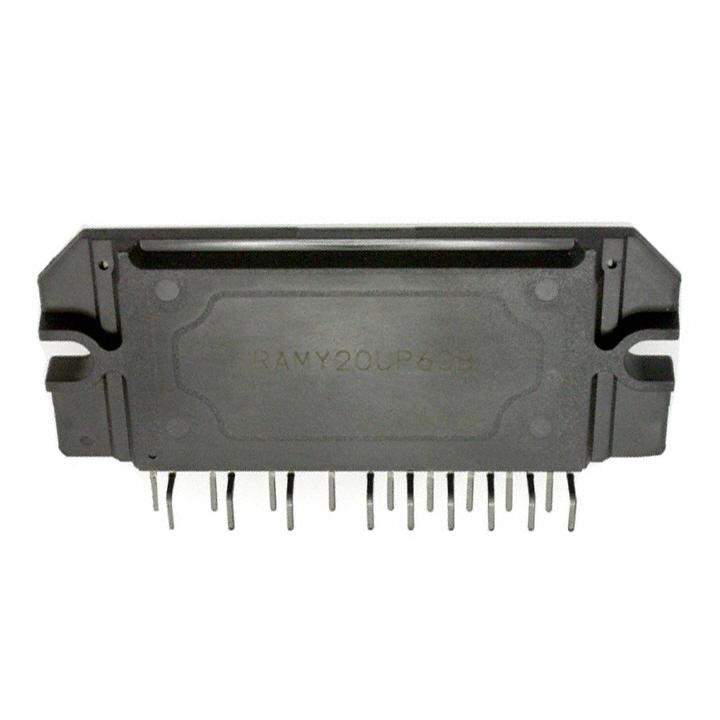

IRAMY20UP60B - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC69354563
Category:
Motor Driver
Package:
SIP-3
Datasheet:
Datasheet 3D Model
Description:
INFINEON IRAMY20UP60B Intelligent Power Module (IPM), IGBT, 600V, 20A, 2kV, SIP 3, iMOTION
Stock Locations:
Availability:
250 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 20.68

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

IRAMY20UP60B is a iMOTION series 20A, 600V integrated power hybrid IC with internal shunt resistor for appliance motor drives applications and compressor drivers. It offers an extremely compact, high performance AC motor driver in a single isolated package to simplify design. This advanced HIC is a combination of low VCE(on) non punch through IGBT technology and the industry benchmark 3 phase high voltage, high speed driver in a fully isolated thermally enhanced package. A built in temperature monitor and over current and over temperature protections, along with the short circuit rated IGBTs and integrated under voltage lockout function, deliver high level of protection and failsafe operation. Using a newly developed single in line package (SiP3) with heat spreader for the power die along with full transfer mould structure minimizes PCB space and resolves isolation problems to heat sink.
Integrated gate drivers
Temperature monitor and protection
Over current shutdown
Under voltage lockout for all channels
Matched propagation delay for all channels
5V Schmitt triggered input logic
Cross conduction prevention logic
Lower di/dt gate driver for better noise immunity
Motor power range of 0.75KW to 2.2KW/85Vac to 253Vac
Isolation 2000VRMS/min

Show

IRAMY20UP60B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	18 Pin
Case/Package	SIP-3
Frequency	20.0 kHz
Number of Outputs	3 Output
Output Voltage	450 V
Output Current	20 A
Number of Channels	3 Channel
Power Dissipation	68000 W
Isolation Voltage	2000 Vrms
Switching Frequency	20.0 kHz
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	68000 W
Supply Voltage	12.20 VDC
	Show
Size-Height	31.1 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
