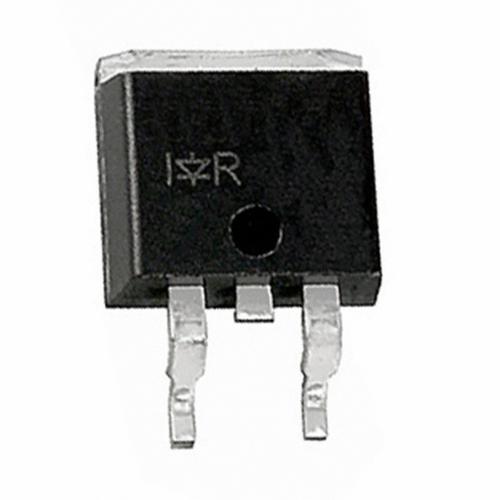

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

VDSS= 55V
RDS(on)= 6.5mΩ
ID= 75A
Description
Specifically designed for Automotive applications, this HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low on resistance per silicon area. Additional features of this design are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating . These features combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications.
Features
Advanced Process Technology
Ultra Low On-Resistance
175°C Operating Temperature
Fast Switching
Repetitive Avalanche Allowed up to Tjmax

Show

IRF3205ZS Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	TO-263
Voltage Rating (DC)	55.0 V
Current Rating	75.0 A
Polarity	N-Channel
Part Family	IRF3205ZS
Input Capacitance	3.45 nF
Gate Charge	110 nC
Drain to Source Voltage (Vds)	55.0 V
Continuous Drain Current (Ids)	110 A
Rise Time	95.0 ns
	Show
Product Lifecycle Status	Obsolete
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
