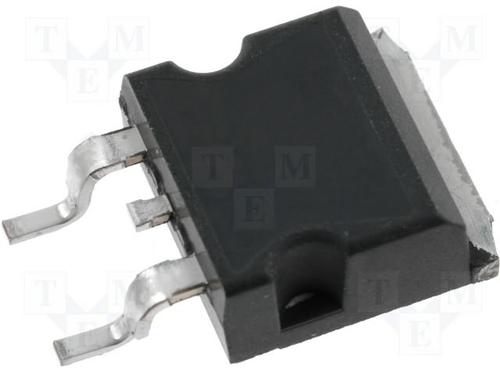

Image is for your reference only,please check specifications for details

IRF3808SPBF - International Rectifier
Manufacturer:
International Rectifier
ManyChip's Part#:
MC116499633
Category:
MOSFET, MOSFET Transistor
Package:
TO-263-3
Datasheet:
Datasheet 3D Model
Description:
MOSFET, Power; N-Ch; VDSS 75V; RDS(ON) 5.9Milliohms; ID 106A; D2Pak; PD 200W; VGS +/-2
Stock Locations:
Availability:
267 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.6

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IRF3808SPBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Voltage Rating (DC)	75.0 V
Current Rating	106 A
Drain to Source Resistance (on) (Rds)	7 mΩ
Polarity	N-Channel
Power Dissipation	200 W
Part Family	IRF3808S
Threshold Voltage	4 V
Input Capacitance	5310pF @25V
Drain to Source Voltage (Vds)	75 V
Breakdown Voltage (Drain to Source)	75 V
Continuous Drain Current (Ids)	106 A
Rise Time	140 ns
Input Capacitance (Ciss)	5310pF @25V(Vds)
Input Power (Max)	200 W
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	10.67 mm
Size-Height	4.83 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
