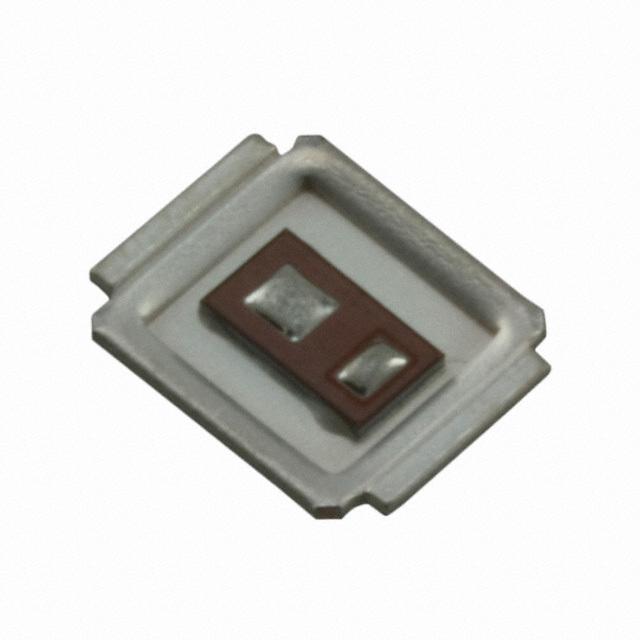

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Benefits:
- RoHS Compliant
- 100% Rg tested
- Low Profile (less than 0.7 mm)
- Dual Sided Cooling
- Optimized for Control FET Applications
- Low Conduction Losses
- Optimized for High Frequency Switching
- Low Package Inductance
IRF6712STRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | Direct-FET |
| Power Rating | 36 W |
| Number of Positions | 6 Position |
| Drain to Source Resistance (on) (Rds) | 0.0038 Ω |
| Polarity | N-Channel |
| Power Dissipation | 2.2 W |
| Threshold Voltage | 1.9 V |
| Input Capacitance | 1570 pF |
| Drain to Source Voltage (Vds) | 25 V |
| Continuous Drain Current (Ids) | 17A |
| Rise Time | 40 ns |
| Input Capacitance (Ciss) | 1570pF @13V(Vds) |
| Input Power (Max) | 2.2 W |
| Fall Time | 12 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 2.2W (Ta), 36W (Tc) |
| Show | |
| Size-Length | 4.85 mm |
| Size-Width | 3.95 mm |
| Size-Height | 0.7 mm |
| Material | Silicon |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
