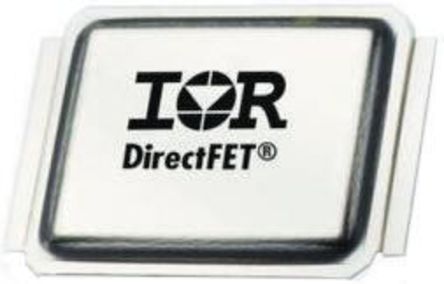

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IRF6717MTR1PBF is a HEXFET® single N-channel Power MOSFET ideal for CPU core DC-to-DC converters. It combines the latest HEXFET® power MOSFET silicon technology with the advanced DirectFET™ packaging to achieve the lowest ON-state resistance in a package. It is compatible with existing layout geometries used in power applications, PCB assembly equipment and vapour phase, infrared or convection soldering techniques. The DirectFET™ package allows dual sided cooling to maximize thermal transfer in power systems, improving previous best thermal resistance by 80%. The IRF6717MPbF balances both low resistance and low charge along with ultra-low package inductance to reduce both conduction and switching losses. It has been optimized for parameters that are critical in synchronous buck including RDS (ON), gate charge and CdV/dt-induced turn on immunity. It offers particularly low RDS (ON) and high CdV/dt immunity for synchronous FET applications.
Dual-sided cooling compatible
Low conduction and switching losses
Optimized for high frequency switching and synchronize FET socket of synchronize buck converter
100% Rg tested
Halogen-free

Show

IRF6717MTR1PBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	7 Pin
Case/Package	Direct-FET
Number of Positions	7 Position
Drain to Source Resistance (on) (Rds)	1.25 mΩ
Polarity	N-CH
Power Dissipation	96 W
Threshold Voltage	1.8 V
Drain to Source Voltage (Vds)	25 V
Continuous Drain Current (Ids)	38A
Rise Time	37 ns
Input Capacitance (Ciss)	6750pF @13V(Vds)
Input Power (Max)	2.8 W
Fall Time	15 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2.8W (Ta), 96W (Tc)
	Show
Size-Length	5.45 mm
Size-Width	5.05 mm
Size-Height	0.62 mm
Material	Silicon
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
