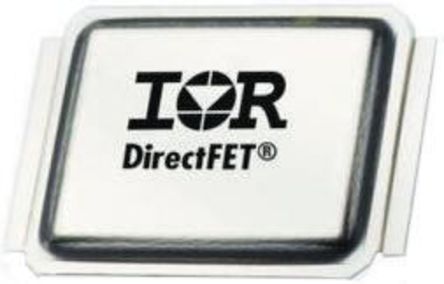

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Single N-Channel 25 V 4.3 W 64 nC Surface Mount Power Mosfet - DirectFET
IRF6718L2TRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 13 Pin |
| Case/Package | Direct-FET |
| Number of Channels | 1 Channel |
| Number of Positions | 13 Position |
| Drain to Source Resistance (on) (Rds) | 1 mΩ |
| Polarity | N-Channel |
| Power Dissipation | 4.3 W |
| Threshold Voltage | 1.9 V |
| Drain to Source Voltage (Vds) | 25 V |
| Breakdown Voltage (Drain to Source) | 25 V |
| Continuous Drain Current (Ids) | 61A |
| Rise Time | 140 ns |
| Input Capacitance (Ciss) | 6500pF @13V(Vds) |
| Fall Time | 53 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 4.3W (Ta), 83W (Tc) |
| Show | |
| Size-Length | 9.15 mm |
| Size-Width | 7.1 mm |
| Size-Height | 0.676 mm |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
