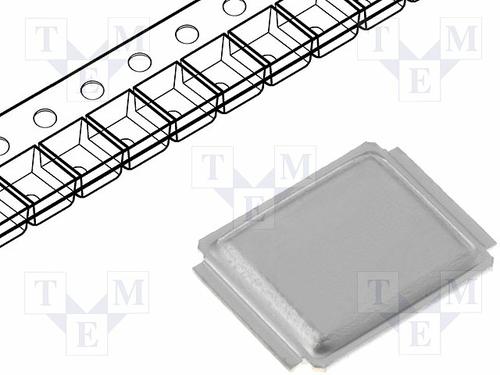

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IRF6727MTR1PBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	7 Pin
Case/Package	DirectFET™ Isometric MX
Power Rating	89 W
Drain to Source Resistance (on) (Rds)	1.22 mΩ
Polarity	N-Channel
Power Dissipation	2.8 W
Part Family	IRF6727M
Threshold Voltage	1.8 V
Drain to Source Voltage (Vds)	30 V
Breakdown Voltage (Drain to Source)	30.0 V
Continuous Drain Current (Ids)	32.0 A
Input Capacitance (Ciss)	6190pF @15V(Vds)
Input Power (Max)	2.8 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
