Description
- Benefits:
- RoHS Compliant
- 100% Rg tested
- Dual N-Channel MOSFET
- Low Profile (less than 0.7 mm)
- Dual Sided Cooling
- Optimized for Control FET Applications
- Low Conduction Losses
- Optimized for High Frequency Switching
- Low Package Inductance

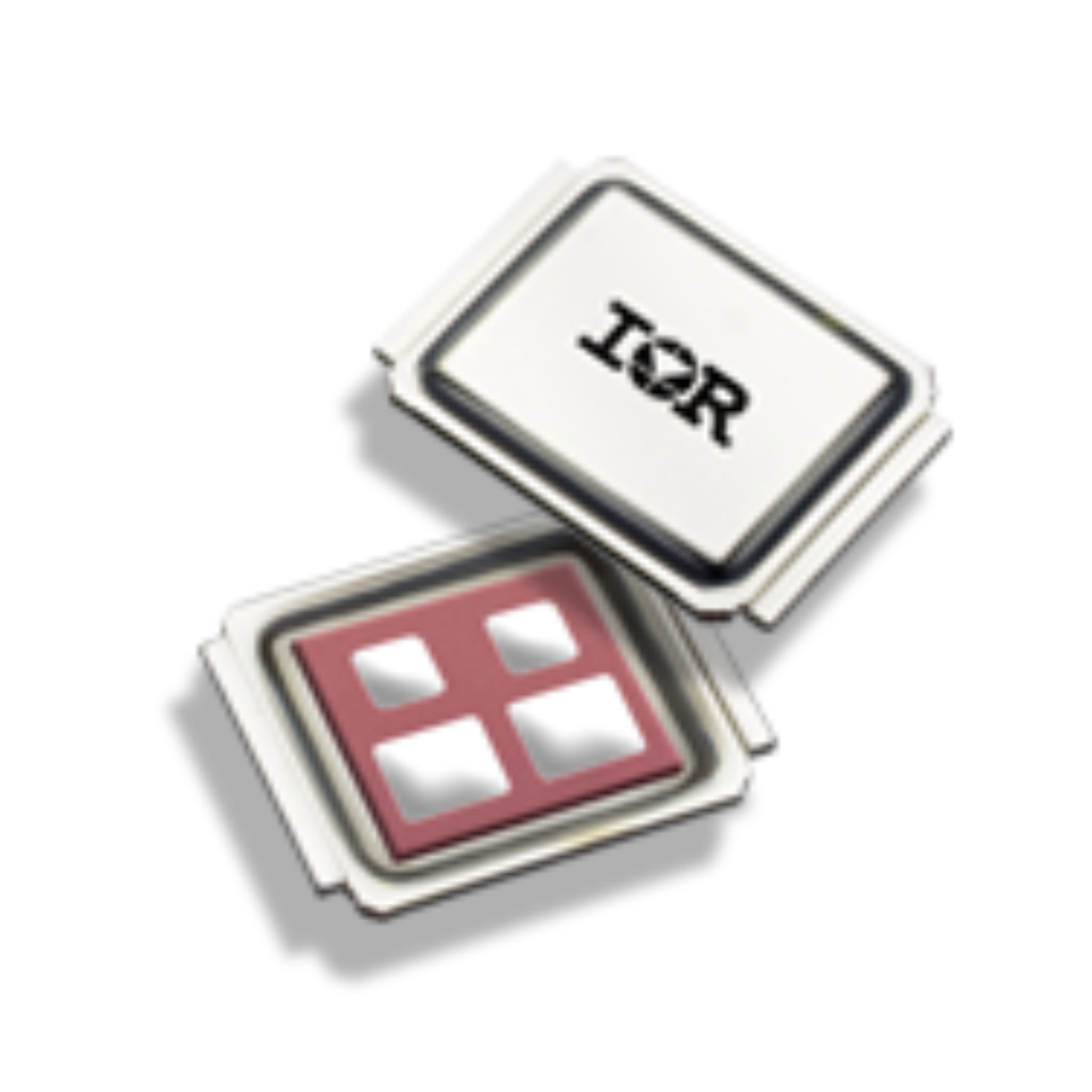

IRF6802SDTRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | Direct-FET |
| Polarity | N-CH |
| Power Dissipation | 1.7 W |
| Drain to Source Voltage (Vds) | 25 V |
| Continuous Drain Current (Ids) | 16A |
| Rise Time | 50 ns |
| Input Capacitance (Ciss) | 1350pF @13V(Vds) |
| Input Power (Max) | 1.7 W |
| Fall Time | 23 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1700 mW |
| Show | |
| Size-Length | 4.85 mm |
| Size-Width | 3.95 mm |
| Size-Height | 0.7 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
