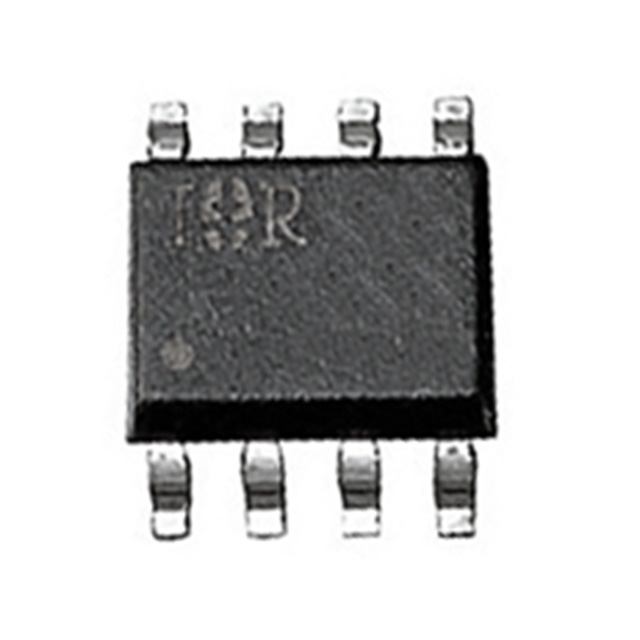

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
Fourth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve the lowest possible on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient device for use in a wide variety of applications.
• Adavanced Process Technology
• Ultra Low On-Resistance
• P-Channel MOSFET
• Surface Mount
• Available in Tape & Reel
• Dynamic dv/dt Rating
• Fast Switching

Show

IRF7205 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Voltage Rating (DC)	-30.0 V
Current Rating	-5.30 A
Polarity	P-Channel
Power Dissipation	2.5 W
Part Family	IRF7205
Drain to Source Voltage (Vds)	30 V
Breakdown Voltage (Drain to Source)	-30.0 V
Continuous Drain Current (Ids)	-4.60 A
Rise Time	21.0 ns
Input Capacitance (Ciss)	870pF @10V(Vds)
Input Power (Max)	2.5 W
	Show
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
