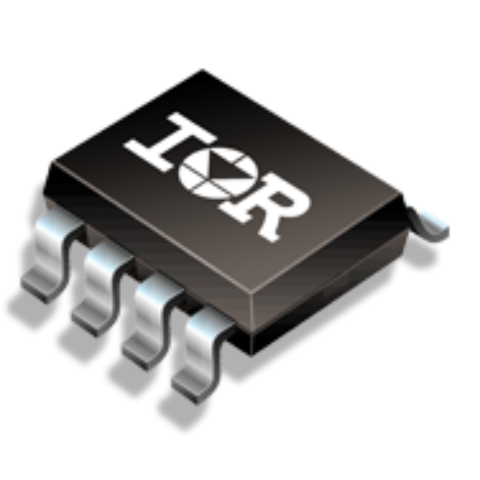

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Benefits:
- RoHS Compliant
- Industry-leading quality
- Low RDS(ON) at 4.5V VGS
- Fully Characterized Avalanche Voltage and Current
- Ultra-Low Gate Impedance
IRF7842 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SO-8 |
| Voltage Rating (DC) | 40.0 V |
| Current Rating | 18.0 A |
| Drain to Source Resistance (on) (Rds) | 4.00 mΩ |
| Part Family | IRF7842 |
| Drain to Source Voltage (Vds) | 40.0 V |
| Continuous Drain Current (Ids) | 18.0 A |
| Rise Time | 12.0 ns |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
