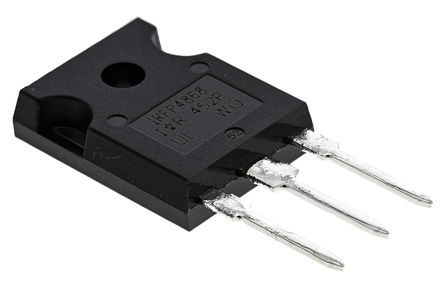

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The IRFP4868PBF is a 300V single N-channel HEXFET® Power MOSFET with extremely low on-resistance per silicon area and fast switching performance using Trench MOSFET technology. Suitable for high efficiency synchronous rectification in SMPS, uninterruptible power supply, high speed power switching, hard switched and high frequency circuits.
- Improved gate, avalanche and dynamic dv/dt ruggedness
- Fully characterized capacitance and avalanche SOA
- Enhanced body diode dV/dt and dI/dt capability
IRFP4868PBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-247-3 |
| Power Rating | 517 W |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.0255 Ω |
| Polarity | N-Channel |
| Power Dissipation | 517 W |
| Threshold Voltage | 3 V |
| Input Capacitance | 10774 pF |
| Drain to Source Voltage (Vds) | 300 V |
| Continuous Drain Current (Ids) | 70A |
| Rise Time | 16 ns |
| Input Capacitance (Ciss) | 10774pF @50V(Vds) |
| Input Power (Max) | 517 W |
| Fall Time | 45 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 517W (Tc) |
| Show | |
| Size-Length | 15.87 mm |
| Size-Width | 5.31 mm |
| Size-Height | 20.7 mm |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
