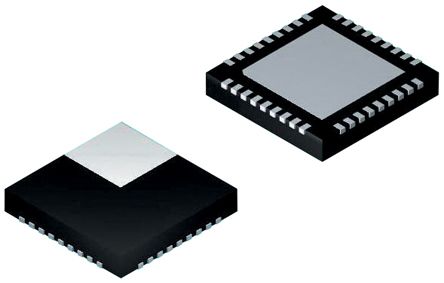

Image is for your reference only,please check specifications for details
- TS3DV20812RHHR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC17319275
-
Category:Multiplexer IC
-
Package:VQFN-36
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS TS3DV20812RHHR 1:2 Analog Multiplexer IC, 1Single, 6Ω, 2.25V to 3.6V, VQFN-36
-
Stock Locations:
-
Availability:100 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.23
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION/ORDERING INFORMATION
- TS3DV20812 is a High Speed Data Rate up to 2Gbps for Differential Signal Passive bi-directional Multiplexer and De-multiplexer for I/O rails up to 5V Level with Low Crosstalk and Insertion Loss.
- TS3DV20812 can be used in either HDMI/DVI sink side or source side with 4-differential pair supporting the high speed and control pins.
- The Ioff and back drive protection allowing to connect the external cable and prevent the back flow current when the Vcc is into 0V.
- The 3 side band signals can be used in DDC (SDAL, SCL) and CEC Signal MUX.
- TS3DS20812 is characterized for operation from -40C to 85C.
- FEATURES
- • Four High-Speed Bidirectional Differential Pair Channel MUX/DEMUX
- • Supports up to 2 Gbps Data Rate
- • VDD Operating Range 2.5 V or 3.3
- – -0 V to 3.3 V Rail To Rail at 2.5 V
- – -0 V to 5 V Rail To Rail at 3.3V
- • IOFF partial Powerdown and Back-Drive Protection.
- • 5-V Input Tolerant on Control Pin
- • Supports Both AC- and DC-Coupled Signals
- • Low Crosstalk: -38 dB at 825 MHz, 2.5 V or 3.3 V
- • Insertion Loss: -1.5 dB at 825 MHz, 2.5 V or 3.3 V
- • Off Isolation -24.67 dB at 825 MHz
- • Low Bit-to-Bit Skew within Pair 5 ps Maximum
- • Channel-to-Channel Skew: 30 ps Maximum
- • Propagation Delay Times: 250 ps Maximum
- • ESD Performance Tested per JESD 22
- – 2000-V Human Body Model (A114-B, Class II)
- – 1000-V Charged-Device Model (C101)
- APPLICATIONS
- • HDMI/DVI Video MUX
- • Panel LVDS Bus MUX
- • LVDS, LVPECL, CML
- • Analog Signals VGA
- • Gigabit LAN Signal MUX
- • Serial Backplane Signal MUX
- • Optical Module
- • Central Office Telecommunication
- • Wireless Base Station
- • High-Speed Logic Data I/O MUX
TS3DV20812RHHR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 36 Pin |
| Case/Package | VQFN-36 |
| Number of Outputs | 16 Output |
| Supply Current | 250 µA |
| Number of Circuits | 11 Circuit |
| Number of Channels | 4 Channel |
| Number of Positions | 36 Position |
| Number of Bits | 8 Bit |
| Propagation Delay Max (tpd) | 149 ps |
| Bandwidth | 1.1 GHz |
| Number of Inputs | 8 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.25V ~ 3.6V |
| Show | |
| Size-Length | 6.1 mm |
| Size-Width | 6.1 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
