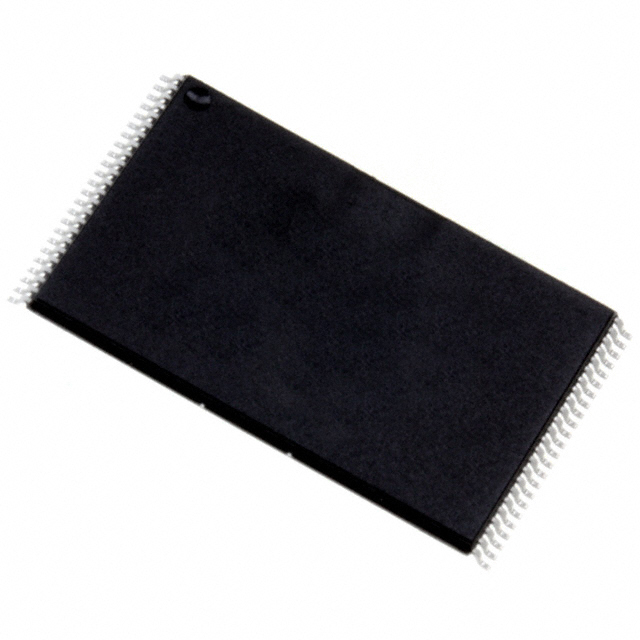

NAND256W3A2BN6F - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC170449342
Category:
Memory Chip
Package:
TFSOP-48
Datasheet:
Datasheet 3D Model
Description:
128Mbit, 256Mbit, 512Mbit, 1 Gbit (x8/x16)528Byte/264 Word Page, 1.8V/3V, NAND Flash Memories
Stock Locations:
Availability:
264 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

SUMMARY DESCRIPTION
The NAND Flash 528 Byte/ 264 Word Page is a family of non-volatile Flash memories that uses
the Single Level Cell (SLC) NAND cell technology. It is referred to as the Small Page family. The de
vices range from 128Mbits to 1Gbit and operate with either a 1.8V or 3V voltage supply. The size of a Page is either 528 Bytes (512 + 16 spare) or 264 Words (256 + 8 spare) depending on whether the
device has a x8 or x16 bus width.
FEATURES SUMMARY
■ HIGH DENSITY NAND FLASH MEMORIES
– Up to 1 Gbit memory array
– Up to 32 Mbit spare area
– Cost effective solutions for mass storage applications
■ NAND INTERFACE
– x8 or x16 bus width
– Multiplexed Address/ Data
– Pinout compatibility for all densities
■ SUPPLY VOLTAGE
– 1.8V device: VDD = 1.7 to 1.95V
– 3.0V device: VDD = 2.7 to 3.6V
■ PAGE SIZE
– x8 device: (512 + 16 spare) Bytes
– x16 device: (256 + 8 spare) Words
■ BLOCK SIZE
– x8 device: (16K + 512 spare) Bytes
– x16 device: (8K + 256 spare) Words
■ PAGE READ / PROGRAM
– Random access: 12µs (max)
– Sequential access: 50ns (min)
– Page program time: 200µs (typ)
■ COPY BACK PROGRAM MODE
– Fast page copy without external buffering
■ FAST BLOCK ERASE
– Block erase time: 2ms (Typ)
■ STATUS REGISTER
■ ELECTRONIC SIGNATURE
■ CHIP ENABLE ‘DON’T CARE’ OPTION
– Simple interface with microcontroller
■ SERIAL NUMBER OPTION
■ HARDWARE DATA PROTECTION
– Program/Erase locked during Power transitions
■ DATA INTEGRITY
– 100,000 Program/Erase cycles
– 10 years Data Retention
■ RoHS COMPLIANCE
– Lead-Free Components are Compliant with the RoHS Directive
■ DEVELOPMENT TOOLS
– Error Correction Code software and hardware models
– Bad Blocks Management and Wear Leveling algorithms
– File System OS Native reference software
– Hardware simulation models

Show

NAND256W3A2BN6F Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	TFSOP-48
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 3.6V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
