IRFPC60PBF Vishay Intertechnology - MOSFETs

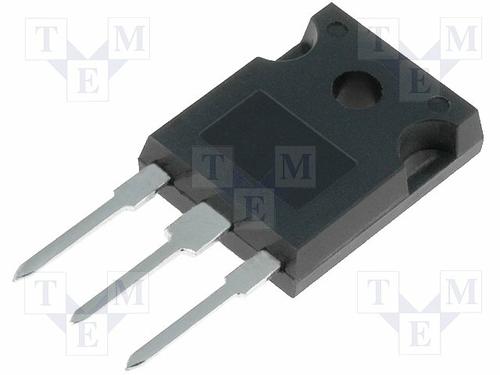

Image is for your reference only,please check specifications for details

IRFPC60PBF - Vishay Intertechnology
Manufacturer:
Vishay Intertechnology
ManyChip's Part#:
MC13423225
Category:
MOSFETs
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
MOSFET, силовой тип; N-канал; напряжение ВДС 600В; сопротивление RDS(ON) 0,4 Ом; ток ID 16 А; размер патрона TO-247AC; мощность PD 280 Вт; напряжение VGS +/-20 В
Stock Locations:
Availability:
323 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.03

Updated at 01/11/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

IRFPC60PBF – это MOSFET силового типа с N-каналом и усиленным режимом работы, способный выдерживать напряжение до 600 В. Это третье поколение MOSFET от Vishay, которое обеспечивает дизайнерам лучшее сочетание быстрой переключения, прочного корпуса и низкого сопротивления при включении. Кроме того, этот транзистор предоставляет больший зазор между контактами, что соответствует требованиям большинства стандартов безопасности.

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	600 V
Current Rating	16.0 A
Power Rating	280 W
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.4 Ω
Polarity	N-Channel
Power Dissipation	280 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	600 V
Breakdown Voltage (Drain to Source)	600 V
Continuous Drain Current (Ids)	16.0 A
Rise Time	54 ns
Input Capacitance (Ciss)	3900pF @25V(Vds)
Rating Power (Max)	280 W
Fall Time	56 ns
Operating Temperature (Max)	150 ℃
	Show
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
