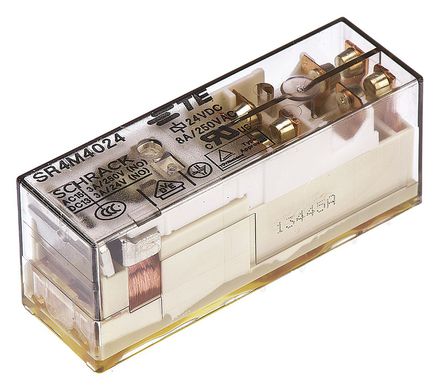

Image is for your reference only,please check specifications for details
- SR4M4024 - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC3739144
-
Category:Power Relay
-
Datasheet:Datasheet 3D Model
-
Description:Electromechanical Relay 24VDC 720Ω 8A 3PST-NO/SPST-NC (( 40mm 13mm 16.5mm)) THT Safety Relay
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SR4M4024 is a 4-pole general-purpose Force Guided Relay with DC coil, SR4 series. 3 form-A and 1 form-B (3NO-1NC) contact configuration, AgSnO2 contact. 4-pole relay with force guided contacts. Compact design and space efficient.
- RT III Environmental protection rating
SR4M4024 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 10 Pin |
| Voltage Rating (AC) | 400 V |
| Current Rating | 8 A |
| Power Rating | 0.8 W |
| Contact Current Rating | 8 A |
| Coil Voltage | 24 VDC |
| Coil Current | 33.33 mA |
| Coil Resistance | 720 Ω |
| Switching Current | 3 A |
| Current Rating (Max) | 8 A |
| Coil Voltage (DC) | 24 V |
| Coil Power | 800 mW |
| Input Power (Max) | 2 KVA |
| Operating Temperature (Max) | 75 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Voltage Rating | 400 VAC |
| Show | |
| Size-Length | 40 mm |
| Size-Width | 16.5 mm |
| Size-Height | 16.5 mm |
| Contact Material | Silver Tin Oxide |
| Operating Temperature | -25℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536410060 |
| ECCN Code | EAR99 |
