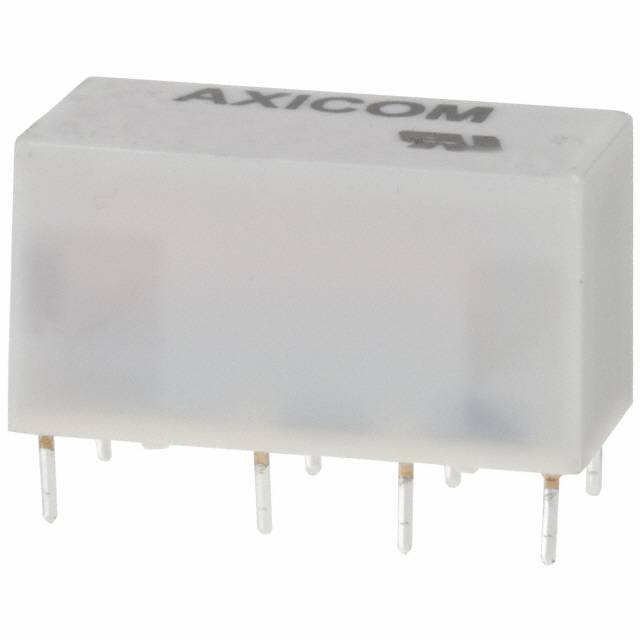

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

V23105A5303A201 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	DIP
Voltage Rating (DC)	24.0 V
Current Rating	3 A
Power Rating	200 mW
Input Voltage (DC)	12.0 V
Contacts Type	DPDT
Power Consumption	200 mW
Contact Current Rating	3 A
Coil Voltage	12 VDC
Coil Current	16.7 mA
Coil Power (DC)	200 mW
Coil Resistance	720 Ω
Carry Current	3.00 A
Current Rating (Max)	3 A
Coil Voltage (DC)	12 V
Coil Power	200 mW
Input Power (Max)	60W, 125VA
Switching Current (Max)	3 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	12 VDC
Maximum Contact Resistance (Max)	<100 mΩ
	Show
Size-Length	20.2 mm
Size-Width	10 mm
Size-Height	11 mm
Contact Material	Silver Nickel
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
HTS Code	8536410050
ECCN Code	EAR99
