Description

INSULATED GATE BIPOLAR TRANSISTOR WITH ULTRAFAST SOFT RECOVERY DIODE
Features
•Short Circuit Rated UltraFast: Optimized for high operating frequencies >5.0 kHz , and Short
Circuit Rated to 10µs @ 125°C, VGE= 15V
•Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than
previous generation
•IGBT co-packaged with HEXFREDTM ultrafast, ultra-soft-recovery anti-parallel diodes for use in
bridge configurations
•Industry standard TO-220AB package
Benefits
•Latest generation 4 IGBTs offer highest power density motor controls possible
•HEXFREDTM diodes optimized for performance with IGBTs. Minimized recovery characteristics reduce noise, EMI and switching losses
•This part replaces the IRGBC20KD2 and IRGBC20MD2 products
•For hints see design tip 97003

Show

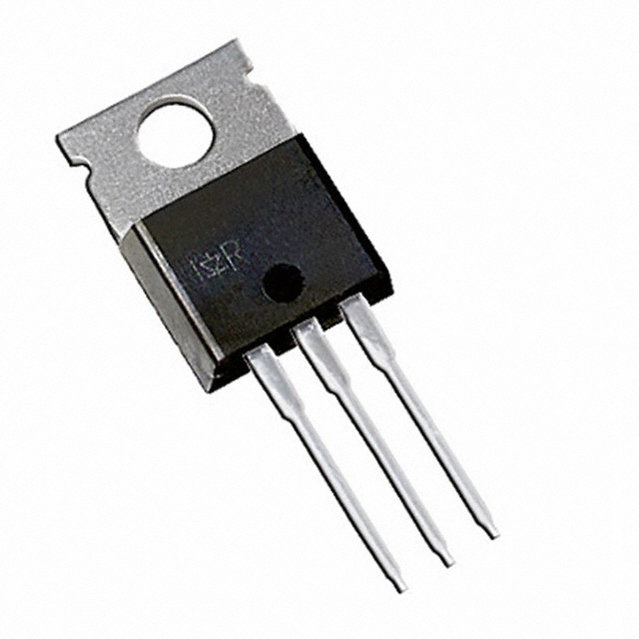

IRG4BC20KD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-220-3
Voltage Rating (DC)	600 V
Current Rating	16.0 A
Power Dissipation	60.0 W
Part Family	IRG4BC20KD
Rise Time	34.0 ns
Breakdown Voltage (Collector to Emitter)	600 V
Reverse recovery time	37 ns
Input Power (Max)	60 W
	Show
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
