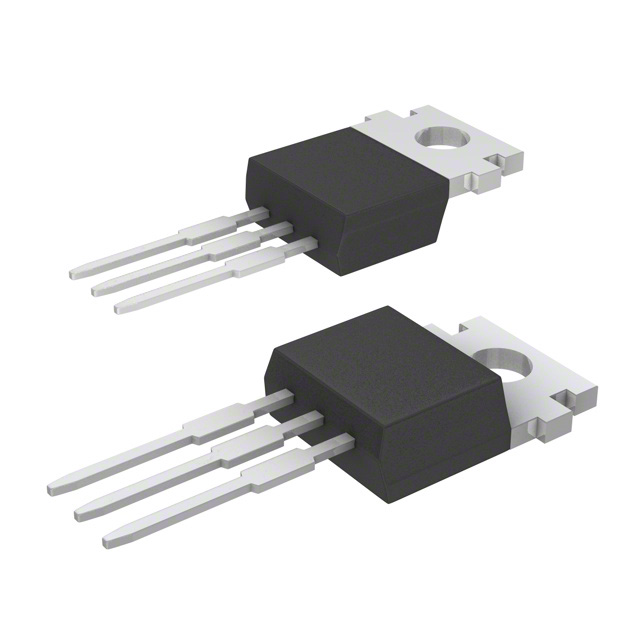

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Features
• Designed expressly for Switch-Mode Power Supply and PFC (power factor correction) applications
• Industry-benchmark switching losses improve efficiency of all power supply topologies
• 50% reduction of Eoff parameter
• Low IGBT conduction losses
• Latest-generation IGBT design and construction offers tighter parameters distribution, exceptional reliability
Benefits
• Lower switching losses allow more cost-effective operation than power MOSFETs up to 150 kHz
("hard switched" mode)
• Of particular benefit to single-ended converters and boost PFC topologies 150W and higher
• Low conduction losses and minimal minority-carrier recombination make these an excellent option for resonant mode switching as well (up to >>300 kHz)

Show

IRG4BC20W Specifications
