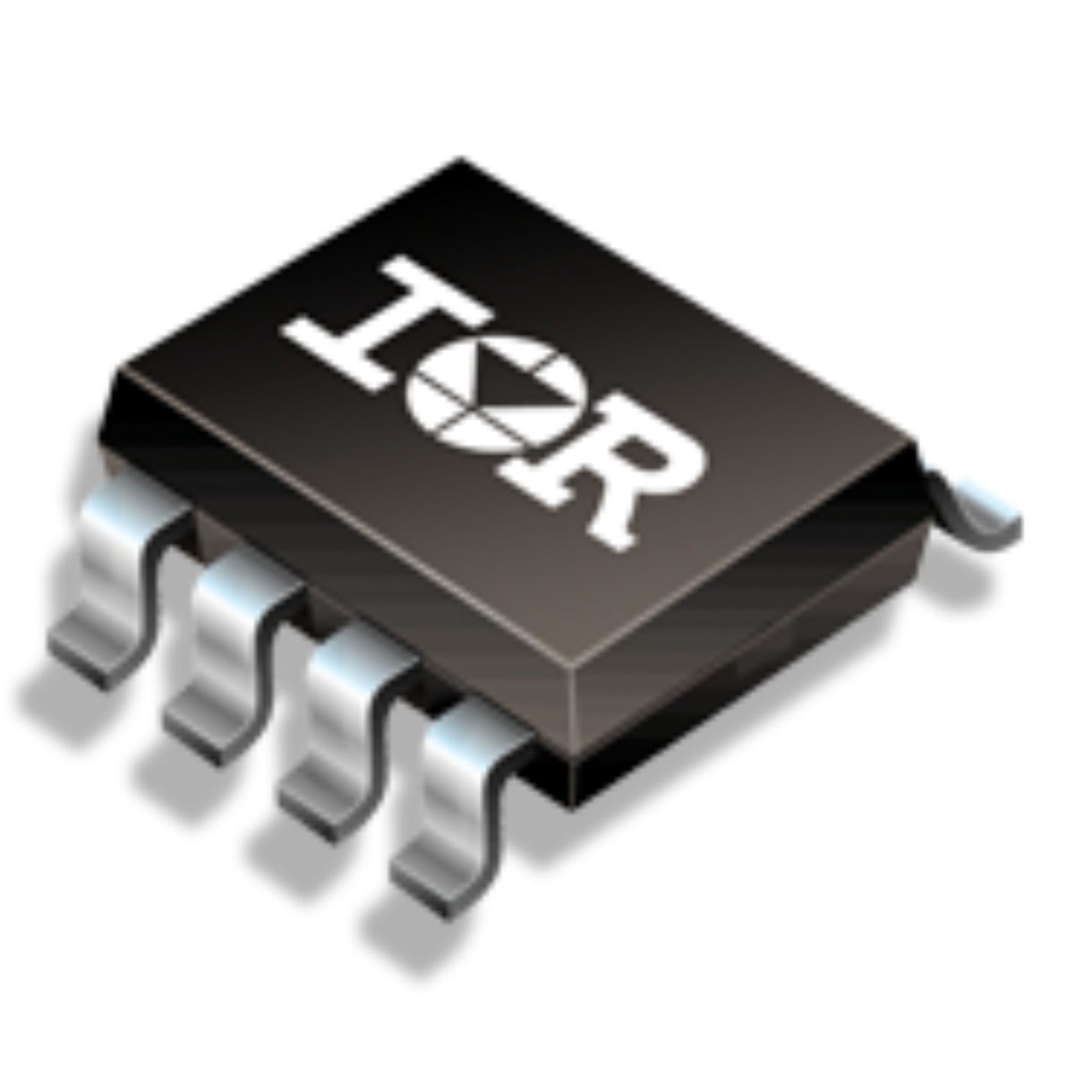

Image is for your reference only,please check specifications for details
- IRS2005S - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC429179624
-
Package:SOIC
-
Datasheet:Datasheet 3D Model
-
Description:Драйвер верхнего и нижнего плеча на 200 В, с типовыми токами источника 0.29 А и стока 0.6 А в корпусе с 8 выводами SOIC для IGBT и MOSFET. Также доступен в корпусе 14-выводном MLPQ 4x4.
-
Stock Locations:
-
Availability:305 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 18/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Сводка характеристик:
- Плавающий драйвер затвора, предназначенный для работы с бустерной схемой
- Полностью работоспособен до +200 В
- Диапазон напряжения питания драйвера затвора до 20 В на канал
- Блокировка по пониженному напряжению для VCC, VBS
- Совместимость с логическими входами 3,3 В, 5 В и 15 В
- Устойчивость к отрицательным переходным напряжениям
- Согласованная задержка распространения
- Предназначен для использования с бустерными источниками питания
- Выход синфазен со входами
- Диапазон рабочих температур от -40°C до 125°C
IRS2005S Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Case/Package | SOIC |
| Show | |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
