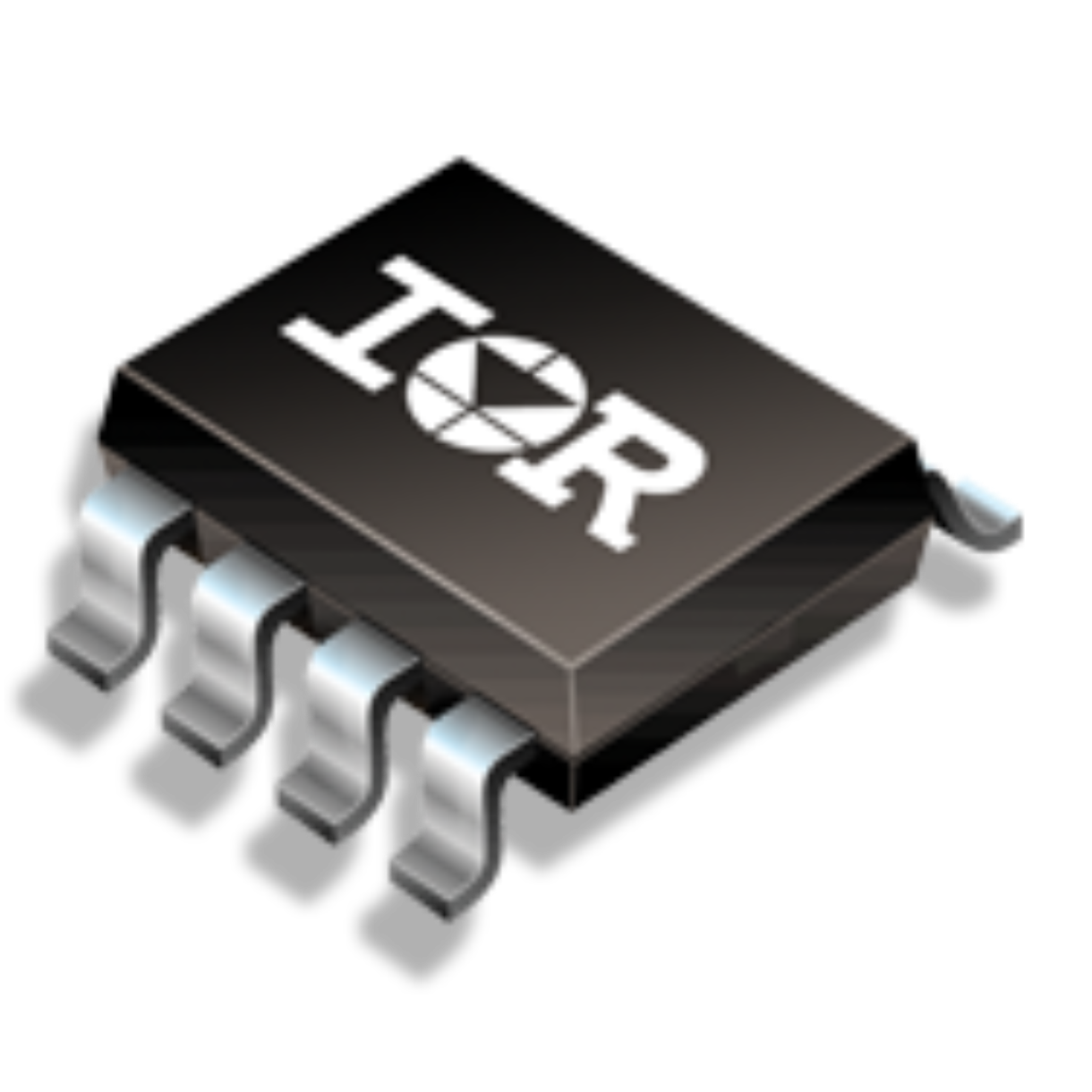

Image is for your reference only,please check specifications for details
- IRS2103S - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC429177572
-
Package:SOIC
-
Datasheet:Datasheet 3D Model
-
Description:600В полмостовой драйвер с типовыми токами источника 0.29А и стока 0.6А в корпусе SOIC с 8 выводами для IGBT и MOSFET. Также доступен в корпусе PDIP с 8 выводами.
-
Stock Locations:
-
Availability:226 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Краткий обзор функций:
- Плавающий драйвер затвора, предназначенный для работы с бутстреп-схемой
- Полностью работоспособен до +600 В
- Устойчив к отрицательным переходным напряжениям, нечувствителен к dV/dt
- Диапазон напряжения питания драйвера затвора от 10 В до 20 В
- Блокировка при пониженном напряжении
- Совместим с логическими входами 3,3 В, 5 В и 15 В
- Логика предотвращения сквозных токов
- Согласованная задержка распространения для обоих каналов
- Внутреннее заданное мертвое время
- Выход верхнего плеча синфазен со входом HIN
- Выход нижнего плеча противофазен со входом LIN
IRS2103S Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Case/Package | SOIC |
| Show | |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
