ISL1208IB8Z - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC9579818
Category:
Real Time Clock IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
Real Time Clock Serial 2Byte Clock/Calendar/Alarm/Battery Backup Automotive 8Pin SOIC Tube
Stock Locations:
Availability:
9,985 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.55

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

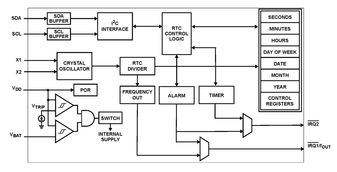

The ISL1208IB8Z is a low-power Real Time Clock with timing and crystal compensation, clock/calendar, power fail indicator, periodic or polled alarm, intelligent battery backup switching and battery-backed user SRAM. The oscillator uses an external, 32.768kHz crystal. The real time clock tracks time with separate registers for hours, minutes and seconds. The device has calendar registers for date, month, year and day of the week. The calendar is accurate through 2099, with automatic leap year correction.
Real time clock/calendar
15 Selectable frequency outputs
Single alarm
Automatic backup to battery or super capacitor
Power failure detection
On-chip oscillator compensation
2-byte Battery-backed user SRAM
400nA Battery supply current

Show

ISL1208IB8Z Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	2.70V (min)
Number of Positions	8 Position
Memory Size	2 B
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
