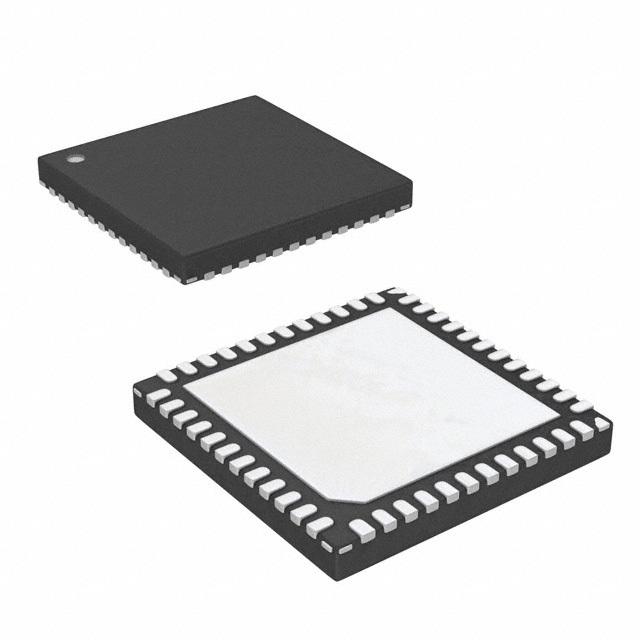

Image is for your reference only,please check specifications for details

ISL6312CRZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC106652658
Category:
Voltage Regulator
Package:
QFN-48
Datasheet:
Datasheet 3D Model
Description:
Voltage Mode PWM Controller 0.375V to 1.6V 100A 80kHz to 1000kHz 48Pin QFN EP Tube
Stock Locations:
Availability:
455 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.49

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**_Four-Phase Buck PWM Controller with _****_Integrated MOSFET Drivers for Intel VR10, _****_VR11, and AMD Applications_**
The ISL6312 four-phase PWM control IC provides a precision voltage regulation system for advanced
microprocessors. The integration of power MOSFET drivers into the controller IC marks a departure from the separate PWM controller and driver configuration of previous multiphase product families. By reducing the number of external parts, this integration is optimized for a cost and space saving power management solution.
**_Features_**
• Integrated Multiphase Power Conversion
\- 2- or 3-Phase Operation with Internal Drivers
\- 4-Phase Operation with External PWM Driver Signal
• Precision Core Voltage Regulation
\- Differential Remote Voltage Sensing
\- ±0.5% System Accuracy Over-Temperature
\- Adjustable Reference-Voltage Offset
• Optimal Transient Response
\- Active Pulse Positioning (APP) Modulation
\- Adaptive Phase Alignment (APA)
• Fully Differential, Continuous DCR Current Sensing
\- Accurate Load Line Programming
\- Precision Channel Current Balancing
• User Selectable Adaptive Dead Time Scheme
\- PHASE Detect or LGATE Detect for Application Flexibility
• Variable Gate Drive Bias: 5V to 12V
• Multi-Processor Compatible
\- Intel VR10 and VR11 Modes of Operation
\- AMD Mode of Operation
• Microprocessor Voltage Identification Inputs
\- 8-bit DAC
\- Selectable between Intel’s Extended VR10, VR11, AMD 5-bit, and AMD 6-bit DAC Tables
\- Dynamic VID Technology
• Overcurrent Protection
• Multi-Tiered Overvoltage Protection
• Digital Soft-Start
• Selectable Operation Frequency up to 1.5MHz Per Phase
• Pb-Free (RoHS Compliant)

Show

ISL6312CRZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	QFN-48
Number of Outputs	1 Output
Output Voltage	0.38V ~ 1.6V
Output Current	100000 mA
Rise Time	26 ns
Switching Frequency	80kHz, 1000kHz
Fall Time	18 ns
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Input Voltage	5V ~ 12V
	Show
Size-Length	7 mm
Size-Width	7 mm
Size-Height	0.95 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
