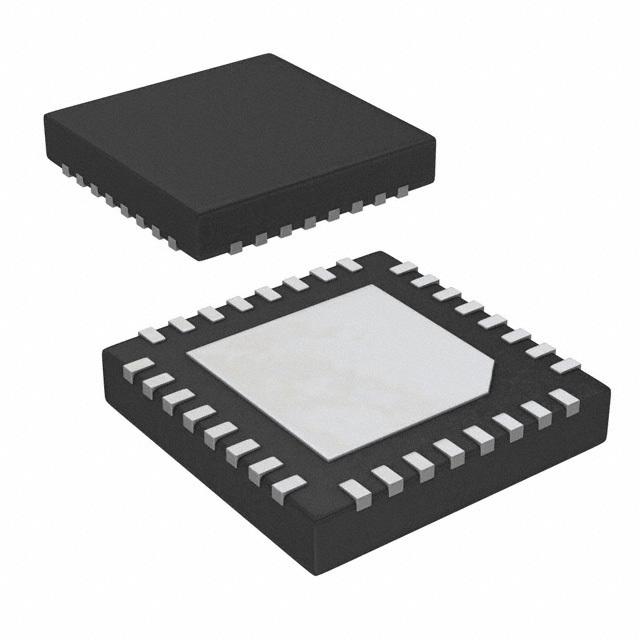

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Single-Phase Buck PWM Controller with Integrated MOSFET Drivers for Intel VR11 and AMD Applications
The ISL6314 single-phase PWM control IC provides a precision voltage regulation system for advanced microprocessors. This controller IC maintains the same features as the multi-phase product family, but reduces the output to a single-phase, for lower current systems. By reducing the number of external parts, this integration is optimized for a cost and space saving power management solution.
Features
• Integrated-driver Single-Phase Power Conversion
• Precision Core Voltage Regulation
\- Differential Remote Voltage Sensing
\- ±0.5% System Accuracy Over-Temperature
\- Adjustable Reference-Voltage Offset
• Optimal Transient Response
\- Adaptive Phase Alignment (APA)
\- Active Pulse Positioning (APP) Modulation
• Fully Differential, Continuous DCR Current Sensing
\- Accurate Load Line Programming
• Variable Gate Drive Bias: 5V to 12V
• Multi-Processor Compatible
\- Intel VR11 Mode of Operation
\- AMD Mode of Operation
• Microprocessor Voltage Identification Inputs
\- 8-Bit DAC
\- Selectable Between Intel VR11, AMD 5-bit, and AMD 6-bit DAC Tables
\- Dynamic VID Technology
• Overcurrent Protection
• Multi-tiered Overvoltage Protection
• Digital Soft-Start
• Selectable Operation Frequency up to 1.0MHz
• Pb-Free (RoHS compliant)

Show

ISL6314CRZ Specifications
